BD1HD500EFJ-CE2 - ROHM Semiconductor

Description: Power Switch ICs - Power Distribution 1ch High-side swtch 4-18V; TSD slf-rest.

Download BD1HD500EFJ-CE2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

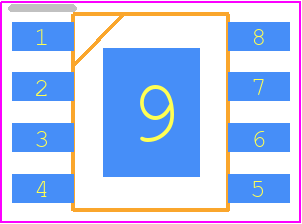

BD1HD500EFJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP-J8
click to zoom
3D Models
BD1HD500EFJ-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSOP-J8
click to zoom

BD1HD500EFJ-CE2 Details

  • Manufacturer Part Number:

    BD1HD500EFJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSOP-8

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    ROHM Semiconductor

  • Risk Rank:

    1.63

  • YTEOL:

    7.3

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSOP

  • Package Equivalence Code:

    TSOP8,.24,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    25 µs

  • Turn-on Time:

    25 µs

  • Width:

    3.9 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD1HD500EFJ-CE2 Overview

Use the download button to access the BD1HD500EFJ-CE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD1HD, or try a keyword search, such as Peripheral Drivers

Parts related to BD1HD500EFJ-CE2

Showing 0 results
