Part Image

HTSS-105-01-T-DV-P-TR - SAMTEC

Description: 10 Position, .100" High-Temp Shrouded Terminal Strip, Cable Mate

Download HTSS-105-01-T-DV-P-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

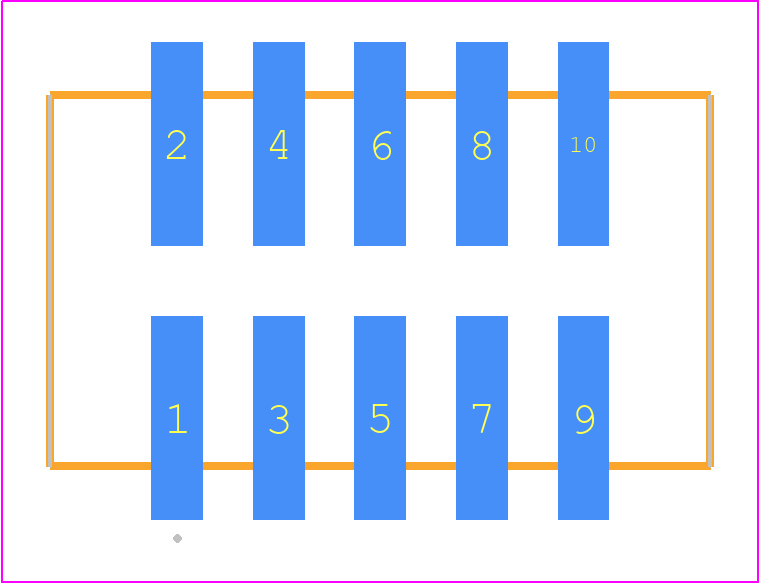

HTSS-105-01-T-DV-P-TR - SAMTEC PCB footprint - Other - Other - HTSS-105-01-YY-DV-P-TR
click to zoom

HTSS-105-01-T-DV-P-TR Details

  • Manufacturer Part Number:

    HTSS-105-01-T-DV-P-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Samtec Inc

  • Risk Rank:

    7.71

  • YTEOL:

    9.1

  • Body Breadth:

    0.365 inch

  • Body Depth:

    0.4 inch

  • Body Length:

    0.65 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1414VAC V

  • Filter Feature:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    6.86 mm

  • Polarization Key:

    POLARIZATION NOTCH

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HTSS-105-01-T-DV-P-TR Overview

Use the download button to access the HTSS-105-01-T-DV-P-TR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HTSS-, or try a keyword search, such as Headers and Edge Type Connectors
