Part Image

sst39vf020-70-4c-nhe - Microchip

Description: SST39VF020-70-4C-NHE, Parallel Flash Memory 2Mbit, 256K x 8 bit, 70ns, 2.7V, 32-Pin, PLCC

Download sst39vf020-70-4c-nhe Model

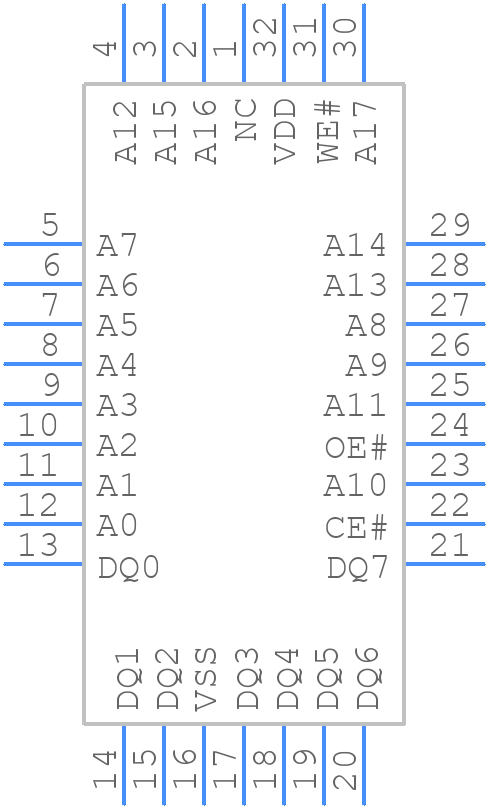

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

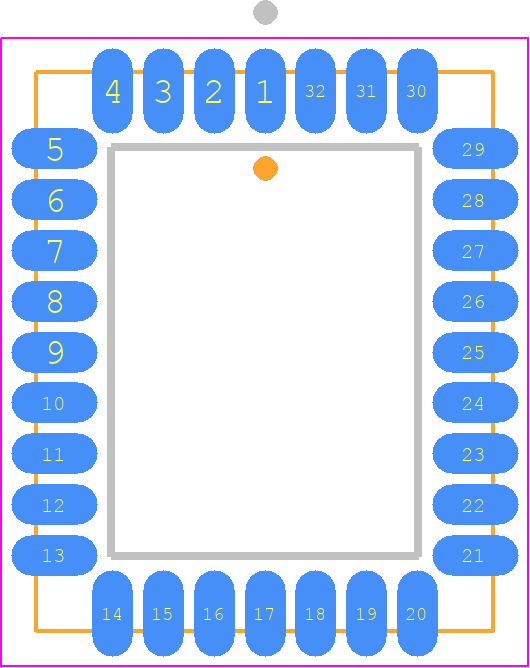

sst39vf020-70-4c-nhe - Microchip PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - NH (32-pin PLCC)
click to zoom

sst39vf020-70-4c-nhe Details

  • Manufacturer Part Number:

    SST39VF020-70-4C-NHE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFJ

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MO-016AE, LCC-32

  • Pin Count:

    32

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.B.1.A

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24.92

  • Access Time-Max:

    70 ns

  • Command User Interface:

    YES

  • Data Polling:

    YES

  • Data Retention Time-Min:

    100

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PQCC-J32

  • JESD-609 Code:

    e3

  • Length:

    13.97 mm

  • Memory Density:

    2097152 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Sectors/Size:

    64

  • Number of Terminals:

    32

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    256KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC32,.5X.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    245

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.8448 mm

  • Sector Size:

    4K

  • Standby Current-Max:

    0.000015 A

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Toggle Bit:

    YES

  • Type:

    NOR TYPE

  • Width:

    11.43 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

sst39vf020-70-4c-nhe Overview

Use the download button to access the sst39vf020-70-4c-nhe schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like sst39, or try a keyword search, such as Flash Memories

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to sst39vf020-70-4c-nhe

Showing 0 results

sst39vf020-70-4c-nhe Alternates

Showing results

Image Part Number Model
Part Image SST39VF020-70-4I-NHE Microchip Technology Inc

256K X 8 FLASH 2.7V PROM, 70 ns, PQCC32, ROHS COMPLIANT, PLASTIC, MO-016AE, LCC-32

Part Image SST39VF020-70-4I-NHE-T Microchip Technology Inc

Flash, 256KX8, 70ns, PQCC32
