0.5INCH-D-MV footprint, schematic symbol and 3D model by Amphenol

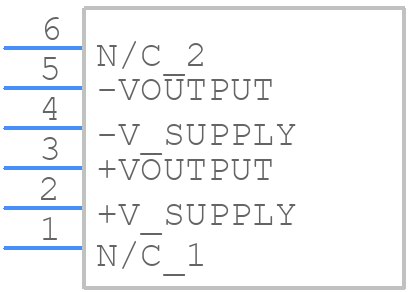

Symbol

click to zoom

PCB Footprints

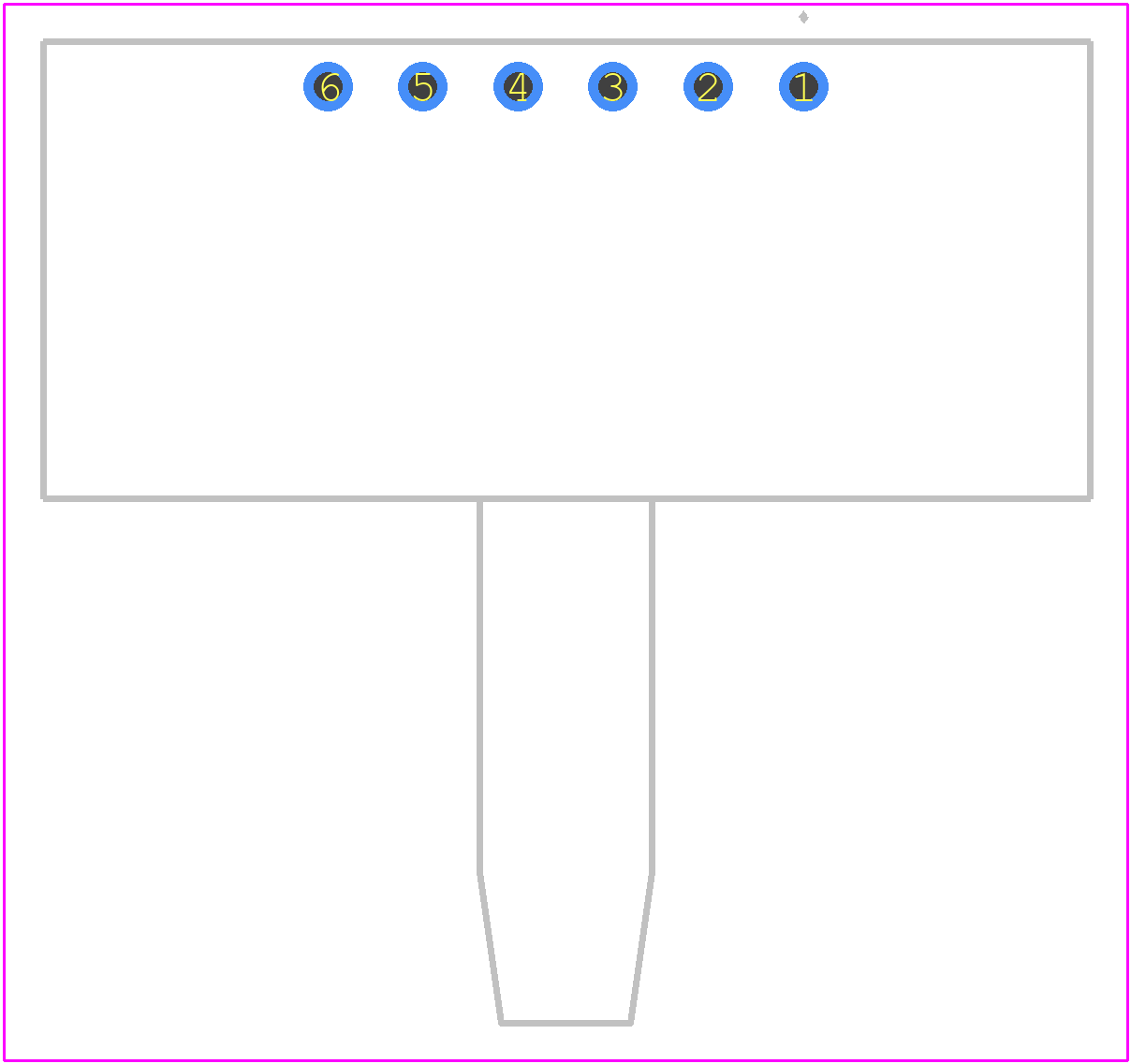

0.5INCH-D-MV - Amphenol PCB footprint - Other - Other - 0.5INCH-D-MV-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 0.5INCH-D-MV
Part Number 0.5INCH-D-MV
Manufacturer Amphenol
Pin Count 6
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 0.5INCH-D-MV-4
Released Date Jun 17, 2021
Last Modified Date Oct 15, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

0.5INCH-D-MV Details

Manufacturer Part Number:
0.5INCH-D-MV
Part Life Cycle Code:
Active
Manufacturer:
Amphenol Corporation
YTEOL:
7
Additional Feature:
RATIOMETRIC OUTPUT
Body Breadth:
27.4 mm
Body Height:
26.2 mm
Body Length or Diameter:
27.9 mm
Mounting Feature:
THROUGH HOLE MOUNT
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Output Type:
VOLTAGE OUTPUT
Package Shape/Style:
RECTANGULAR
Port Type:
BARBED
Pressure Range-Max:
0.018 Psi
Pressure Sensing Mode:
DIFFERENTIAL
Response Time:
100 µs
Sensors/Transducers Type:
PRESSURE SENSOR,PIEZORESISTIVE
Supply Voltage-Max:
16 V
Surface Mount:
NO
Termination Type:
PIN

Trust Checks

Community Provided

System Verified

Community Approved

0.5INCH-D-MV Overview

Use the download button to access the 0.5INCH-D-MV schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 0.5IN, or try a keyword search, such as Pressure Sensors
