0009481084 - Molex

0009481084 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the Molex 0009481084 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage or disconnection.
• Is this connector suitable for high-temperature applications?
  The Molex 0009481084 connector has an operating temperature range of -40°C to 105°C. While it can tolerate high temperatures, it's essential to consider the temperature rating of the materials used in your specific application to ensure reliable performance.
• Can I use this connector with wire sizes other than AWG 20-24?
  While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some limitations. Consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes and ensure proper connections.

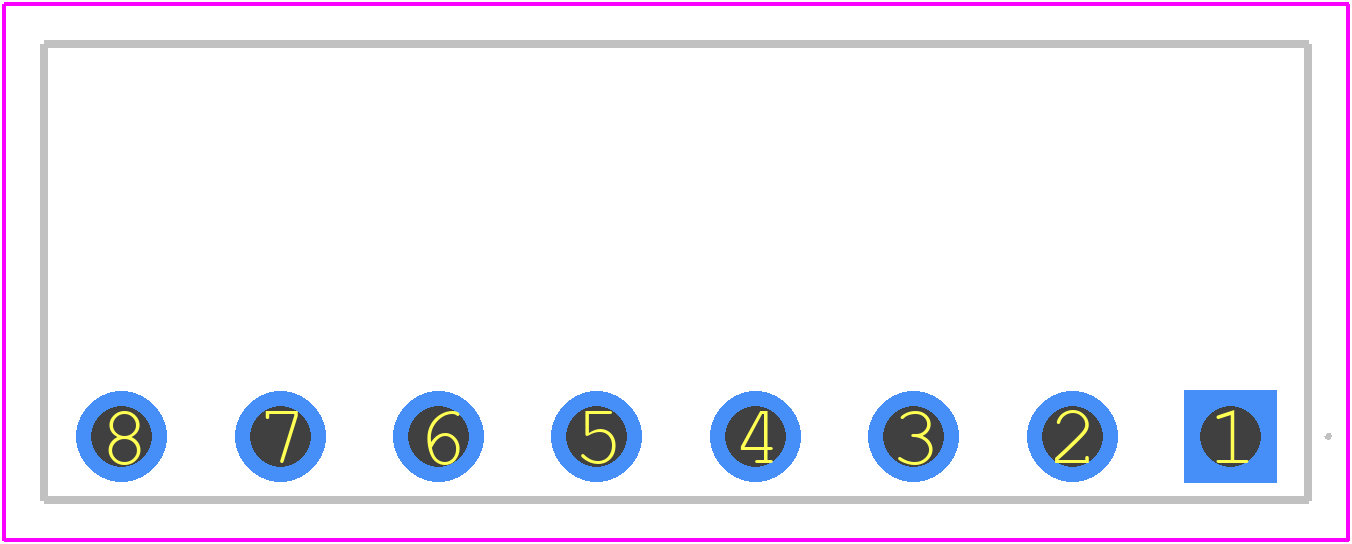

• Are there any specific PCB layout considerations for this connector?
  Yes, it's essential to follow Molex's recommended PCB layout guidelines to ensure proper connector alignment, clearance, and thermal management. Consult the Molex application notes or datasheet for specific layout recommendations.
