001-1-014-3-B1STF-XT0 - MPE-Garry

Description: IC socket, 14 pole, pitch 2.54 mm (7.62 mm), Copper alloy, tin plated for DIL-IC

Download 001-1-014-3-B1STF-XT0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
001-1-014-3-B1STF-XT0 - MPE-Garry - PCB symbol
click to zoom
PCB Footprints

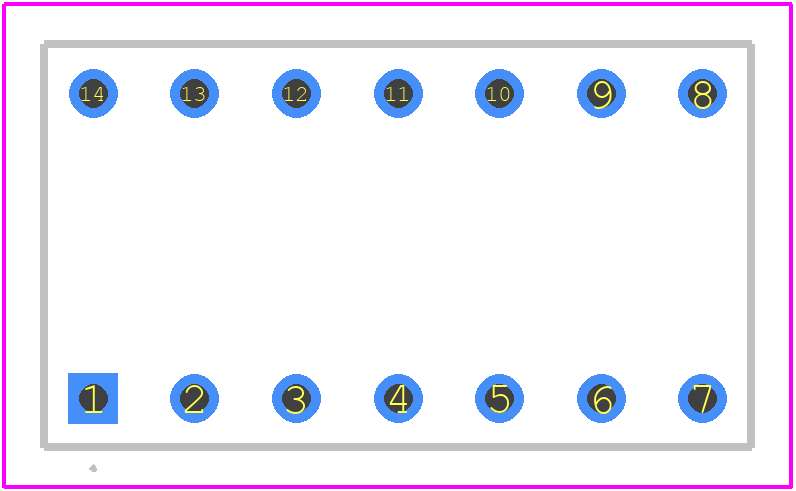

001-1-014-3-B1STF-XT0 - MPE-Garry PCB footprint - Other - Other - 001-1-014-3-B1STF-XT0-3
click to zoom
3D Models
001-1-014-3-B1STF-XT0 - MPE-Garry - 3D model - Other - 001-1-014-3-B1STF-XT0-3
click to zoom

001-1-014-3-B1STF-XT0 Details

  • Manufacturer Part Number:

    001-1-014-3-B1STF-XT0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    MPE-Garry GmbH

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.397 inch

  • Body Depth:

    0.165 inch

  • Body Length:

    0.696 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP14

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    POLYETHYLENE

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Packing Method:

    TUBE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

001-1-014-3-B1STF-XT0 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 001-1-014-3-B1STF-XT0 is -40°C to 125°C, as specified by the manufacturer.
  • Yes, the 001-1-014-3-B1STF-XT0 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
  • The recommended storage condition for the 001-1-014-3-B1STF-XT0 is in a dry, cool place, away from direct sunlight, with a temperature range of 20°C to 30°C and relative humidity below 60%.
  • The 001-1-014-3-B1STF-XT0 is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with the manufacturer or perform additional testing to ensure the component's reliability.
  • The typical lead time for delivery of the 001-1-014-3-B1STF-XT0 varies depending on the quantity and availability. It's recommended to check with the manufacturer or authorized distributors for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

001-1-014-3-B1STF-XT0 Overview

Use the download button to access the 001-1-014-3-B1STF-XT0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 001-1, or try a keyword search, such as Sockets and Chip Carriers
