0015921430 - Molex

Description: 1.27mm Pitch EBBI 50D Receptacle, Vertical, 30 Circuits

Download 0015921430 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

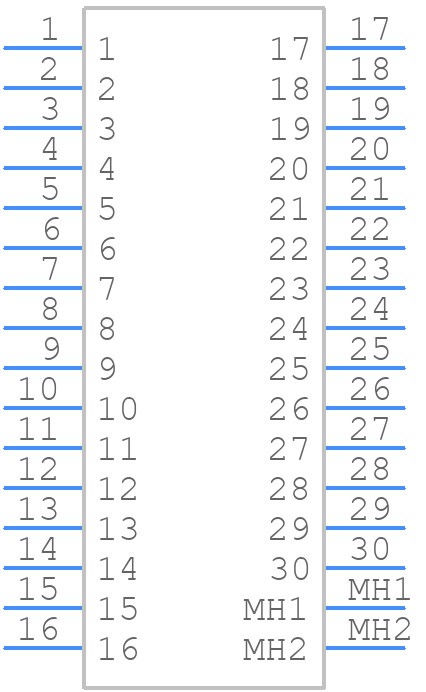

0015921430 - Molex - PCB symbol
click to zoom
PCB Footprints

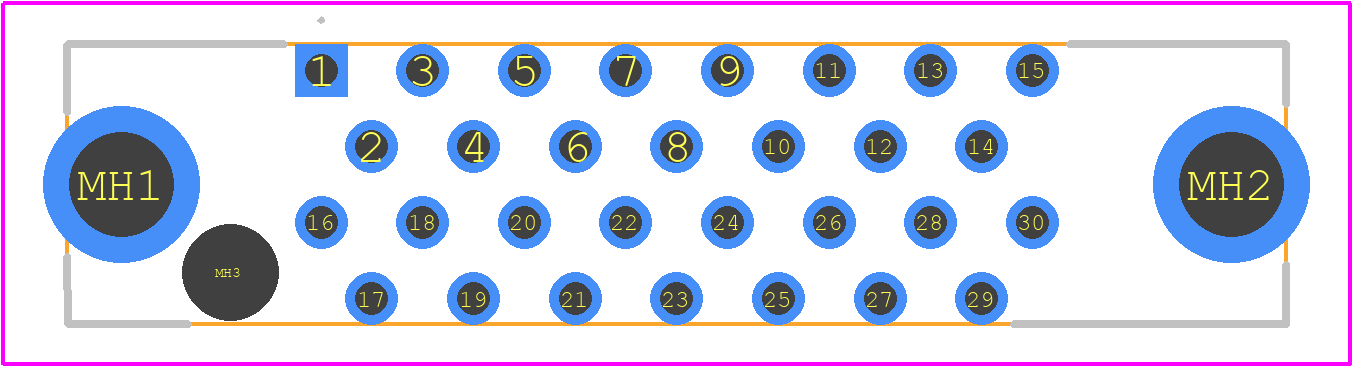

0015921430 - Molex PCB footprint - Other - Other - 0015921430-1
click to zoom
3D Models
0015921430 - Molex - 3D model - Other - 0015921430-1
click to zoom

0015921430 Details

  • Manufacturer Part Number:

    0015921430

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India, Malaysia, Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Molex

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e3
