0022041091 - Molex

Description: Mini-Latch / KK Wire-to-Board Header, Vertical, with Friction Ramp, 9 Circuits, Tin (Sn) Plating, Natural

Download 0022041091 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0022041091 - Molex - PCB symbol
click to zoom
PCB Footprints

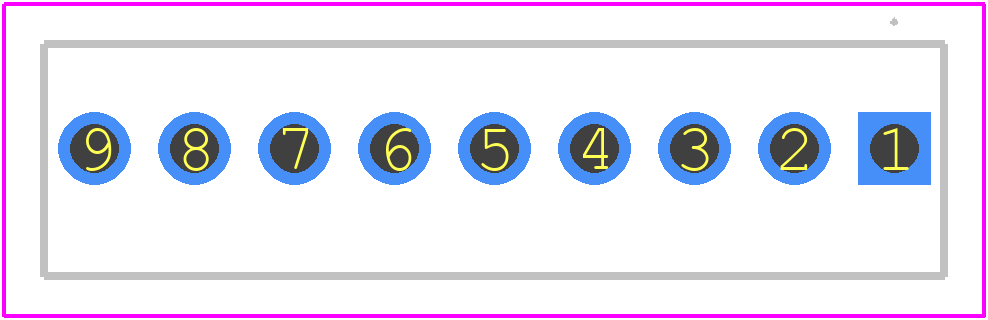

0022041091 - Molex PCB footprint - Other - Other - 0022041091-2
click to zoom
3D Models
0022041091 - Molex - 3D model - Other - 0022041091-2
click to zoom

0022041091 Details

  • Manufacturer Part Number:

    0022041091

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Brazil, Hong Kong SAR, India, Ireland, Japan, Mainland China, South Korea, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    3

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    SN

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.098 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Plating Thickness:

    200u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.134 inch

  • Terminal Pitch:

    2.4892 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9
