0022284164 - Molex

Description: KK 254 Breakaway Header, Vertical, 16 Circuits, 0.38µm Gold (Au) Selective Plating, Mating Pin Length 8.13mm

Download 0022284164 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0022284164 - Molex - PCB symbol
click to zoom
PCB Footprints

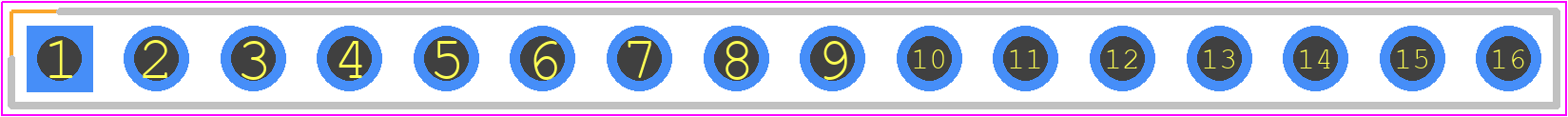

0022284164 - Molex PCB footprint - Header, Vertical - Header, Vertical - 0022284164
click to zoom
3D Models
0022284164 - Molex - 3D model - Header, Vertical - 0022284164
click to zoom

0022284164 Details

  • Manufacturer Part Number:

    0022284164

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Country Of Origin:

    India, Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    18 Weeks, 4 Days

  • Manufacturer:

    Molex

  • YTEOL:

    9.1

  • Body Breadth:

    0.098 inch

  • Body Depth:

    0.09 inch

  • Body Length:

    1.6 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    4 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

0022284164 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the Molex 0022284164 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage or disconnection.
  • The Molex 0022284164 connector has an operating temperature range of -40°C to 105°C. While it can tolerate high temperatures, it's essential to consider the temperature rating of the materials used in your specific application to ensure reliable performance.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some limitations. Consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes and ensure proper connections.
  • Molex provides PCB layout guidelines and recommendations for the 0022284164 connector. Follow these guidelines to ensure proper signal integrity, minimize electromagnetic interference (EMI), and prevent damage to the connector or PCB.
