0026481096 - Molex

Description: KK 396 Breakaway Header, Right-Angle with Friction Lock, 9 Circuits, Tin (Sn) Plating

Download 0026481096 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0026481096 - Molex - PCB symbol
click to zoom
PCB Footprints

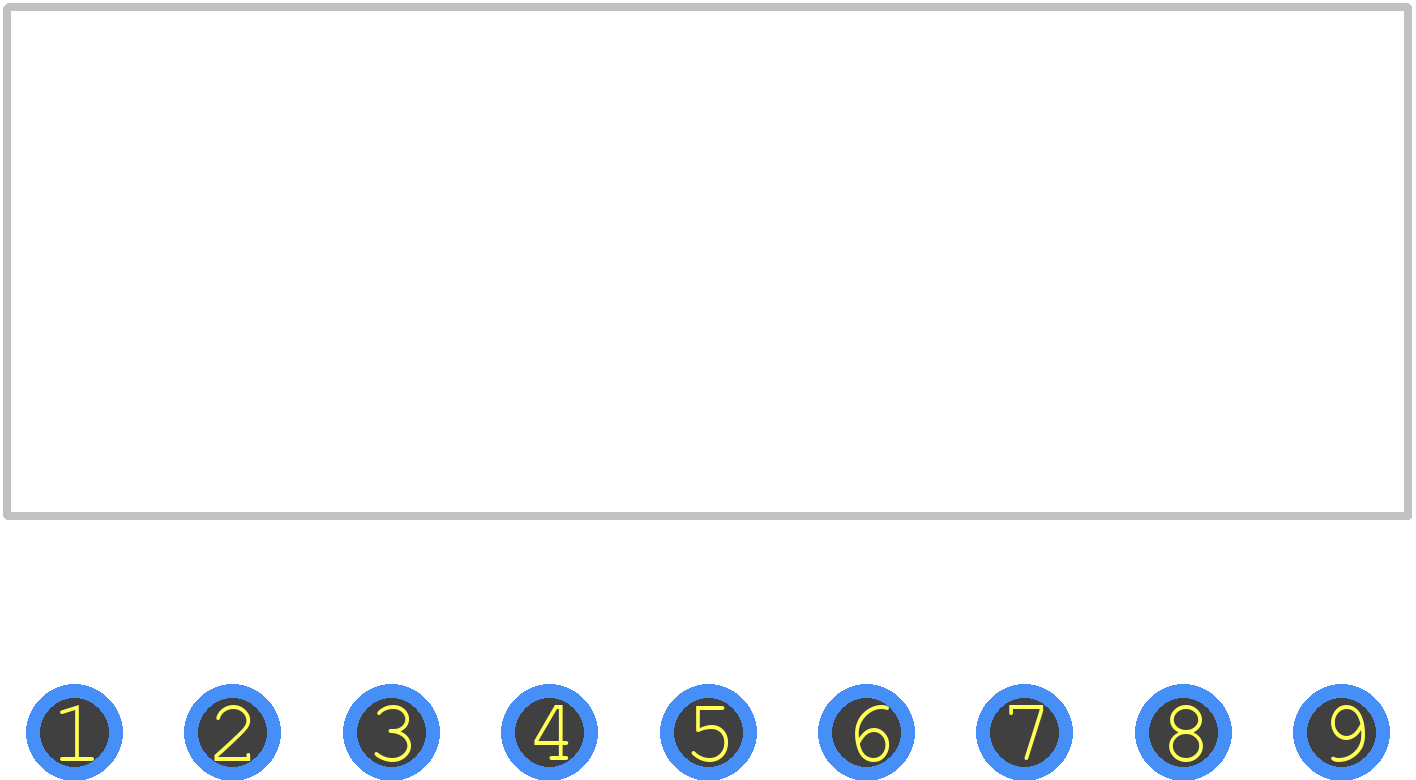

0026481096 - Molex PCB footprint - Other - Other - 0026481096
click to zoom
3D Models
0026481096 - Molex - 3D model - Other - 0026481096
click to zoom

0026481096 Details

  • Manufacturer Part Number:

    0026481096

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India, Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 7A

  • Body Breadth:

    0.355 inch

  • Body Depth:

    0.713 inch

  • Body Length:

    1.402 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - reflowed over Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYESTER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

0026481096 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0026481096 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0026481096 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and securing procedures to ensure the connector remains secure and functional.
  • The maximum operating temperature for the 0026481096 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • Yes, the 0026481096 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
  • The recommended torque for the screw locks on the 0026481096 connector is 0.5-1.5 N·m (4-12 in·lb). Over-tightening may damage the connector or the PCB.
