0034.6925 - SCHURTER

Description: Schurter 10A Radial T Leaded PCB Mount Fuse, 250 V ac

Download 0034.6925 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0034.6925 - SCHURTER - PCB symbol
click to zoom

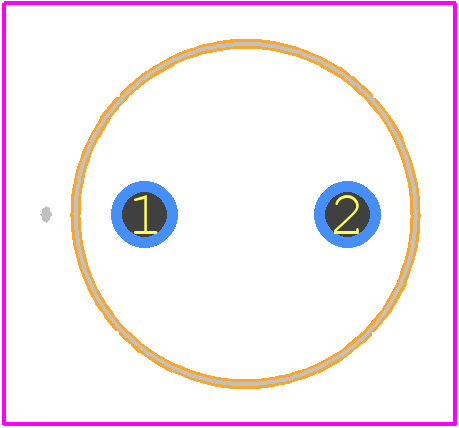

PCB Footprints
0034.6925 - SCHURTER PCB footprint - Other - Other - 0034.6925-1
click to zoom
3D Models
0034.6925 - SCHURTER - 3D model - Other - 0034.6925-1
click to zoom

0034.6925 Details

  • Manufacturer Part Number:

    0034.6925

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.10.00.40

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    0

  • Blow Characteristic:

    TIME LAG

  • Body Height:

    8.5 mm

  • Body Length or Diameter:

    8.5 mm

  • Circuit Protection Type:

    ELECTRIC FUSE

  • JESD-609 Code:

    e3

  • Joule Integral-Nom:

    440 J

  • Mounting Feature:

    THROUGH HOLE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BAG

  • Pre-arcing Time-Min:

    60000 ms

  • Rated Breaking Capacity:

    100 A

  • Rated Current:

    10 A

  • Rated Voltage(AC):

    250 V

  • Reference Standard:

    CE; CSA; CUL; IEC; UKCA; UL

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    PIN WIRE
