0039281243 - Molex

Description: Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 24 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural

Download 0039281243 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0039281243 - Molex - PCB symbol
click to zoom
PCB Footprints

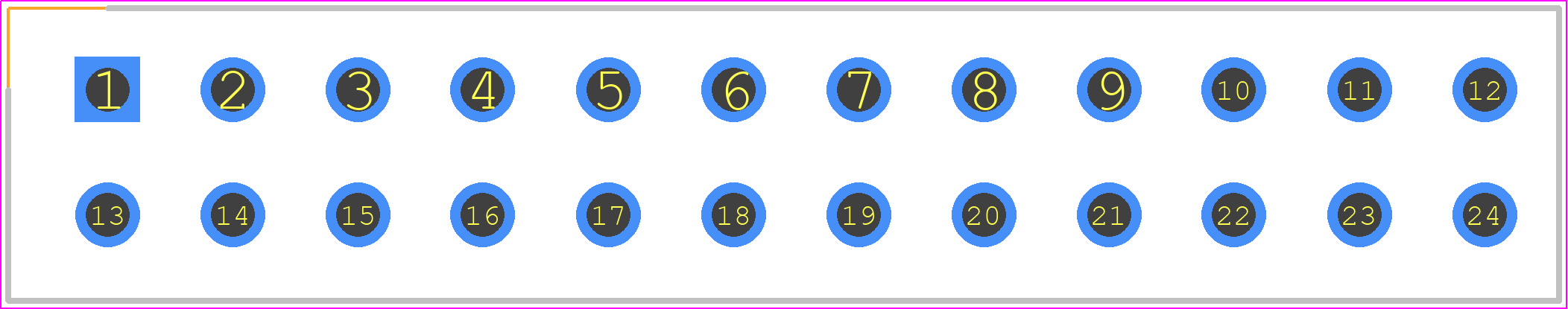

0039281243 - Molex PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - 39281243
click to zoom
3D Models
0039281243 - Molex - 3D model - Header, Receptacle - Straight PTH Box - 39281243
click to zoom

0039281243 Details

  • Manufacturer Part Number:

    0039281243

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Brazil, Hong Kong SAR, Japan, Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    6.85

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO
