0039532265 - Molex

0039532265 Details

• Manufacturer Part Number:

  0039532265

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LOW HALOGEN, ROHS AND REACH COMPLIANT

• Country Of Origin:

  Japan, Mainland China

• ECCN Code:

  EAR99

• Manufacturer:

  Molex

• YTEOL:

  6

• Body Breadth:

  0.197 inch

• Body Depth:

  0.386 inch

• Body Length:

  1.506 inch

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin/Bismuth (Sn/Bi)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• JESD-609 Code:

  e6

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.049 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -20 °C

• Option:

  GENERAL PURPOSE

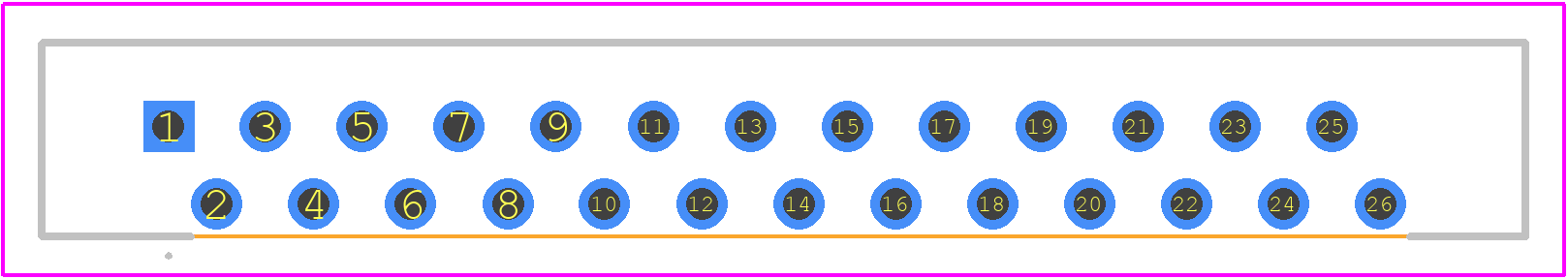

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1 A

• Terminal Pitch:

  2.5 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  26

• UL Flammability Code:

  94V-0
