009155004402006 - Kyocera AVX

Description: 4 Position Spring Battery Contact Connector Surface Mount

Download 009155004402006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

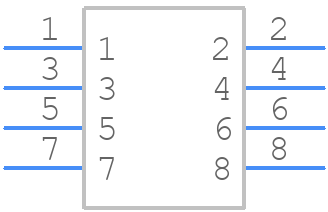

009155004402006 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

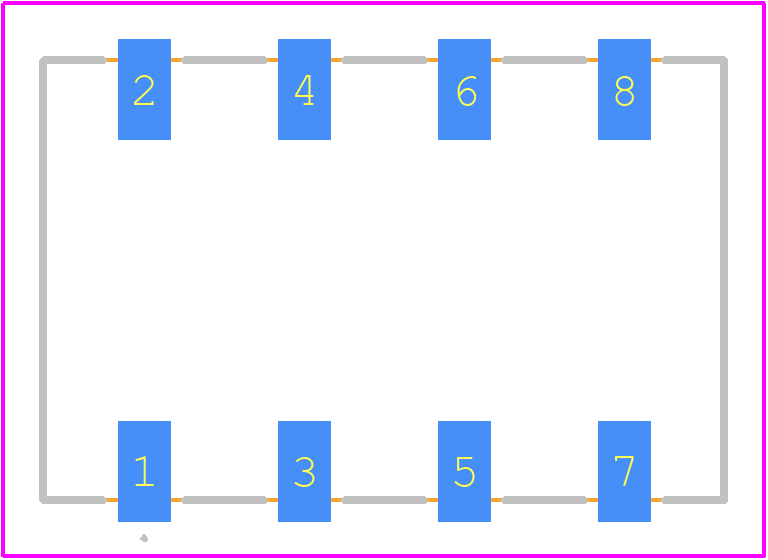

009155004402006 - Kyocera AVX PCB footprint - Other - Other - 009155004402006-2
click to zoom
3D Models
009155004402006 - Kyocera AVX - 3D model - Other - 009155004402006-2
click to zoom

009155004402006 Details

  • Manufacturer Part Number:

    009155004402006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    12

  • Body Breadth:

    0.433 inch

  • Body Depth:

    0.157 inch

  • Body Length:

    0.618 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    COMPRESSION

  • Durability:

    5000 Cycles

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.157 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    9.53 mm

  • Packing Method:

    TR

  • Plating Thickness:

    16u inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

009155004402006 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 009155004402006 can be found in the Kyocera AVX Components' recommended land pattern document or by contacting their technical support team.
  • Handle the component by the edges, avoid touching the pads or components, and use an ESD wrist strap or mat to prevent electrostatic discharge damage.
  • The maximum reflow temperature for the 009155004402006 is typically 260°C, but it's recommended to consult the datasheet or contact Kyocera AVX Components' technical support for specific guidance.
  • The 009155004402006 is designed for general-purpose use, but its suitability for high-vibration or high-shock environments depends on the specific application. Consult Kyocera AVX Components' technical support or perform additional testing to ensure reliability.
  • The MSL for the 009155004402006 is typically level 3, but it's recommended to consult the datasheet or contact Kyocera AVX Components' technical support for specific guidance on handling and storage.
