009155004741006 - Kyocera AVX

Description: Battery Contacts 4pos R/A Battery w/o Boss 2.0mm

Download 009155004741006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

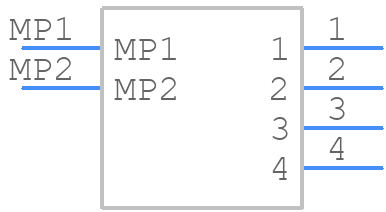

009155004741006 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

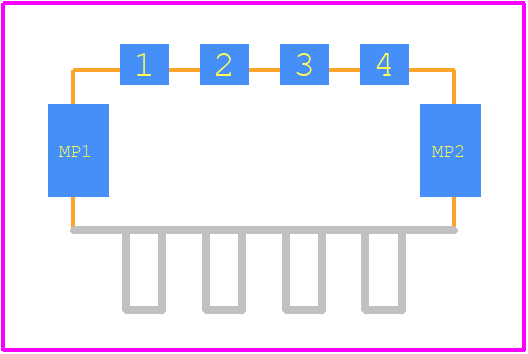

009155004741006 - Kyocera AVX PCB footprint - Other - Other - 009155004741006-3
click to zoom
3D Models
009155004741006 - Kyocera AVX - 3D model - Other - 009155004741006-3
click to zoom

009155004741006 Details

  • Manufacturer Part Number:

    009155004741006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    12

  • Board Mounting Option:

    COMPLIANT BOARDLOCK

  • Body Breadth:

    0.15 inch

  • Body Depth:

    0.177 inch

  • Body Length:

    0.374 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    COMPRESSION

  • DIN Conformance:

    NO

  • Durability:

    5000 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE46

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Packing Method:

    TR

  • Plating Thickness:

    16u inch

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

009155004741006 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 009155004741006 can be found in the Kyocera AVX Components' application note AN1002, which provides guidelines for PCB layout and land pattern design.
  • While the datasheet provides temperature ratings, it's essential to note that the component's performance may degrade at high temperatures. Kyocera AVX Components recommends derating the component's voltage and current ratings at temperatures above 85°C to ensure reliable operation.
  • According to Kyocera AVX Components, the maximum recommended voltage derating for the 009155004741006 is 80% of the rated voltage to ensure reliable operation and prevent premature failure.
  • While the datasheet provides some information on the component's high-frequency characteristics, it's essential to note that the component's behavior may vary depending on the specific application and frequency range. Kyocera AVX Components recommends consulting their application notes and technical support for specific guidance on high-frequency applications.
  • Kyocera AVX Components recommends following the IPC/JEDEC J-STD-020 standard for soldering profiles, with a peak temperature of 260°C and a dwell time of 30-45 seconds to ensure reliable solder joints.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

009155004741006 Overview

Use the download button to access the 009155004741006 schematic symbol, PCB footprint, and 3D model.
