009155006741006 - Kyocera AVX

Description: 6 Position Spring Battery Contact Connector Surface Mount, Right Angle

Download 009155006741006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

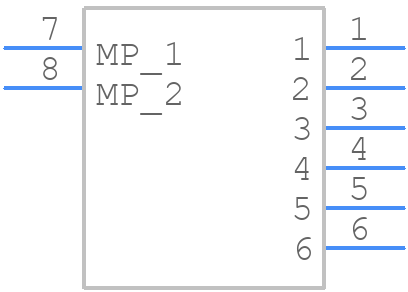

009155006741006 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

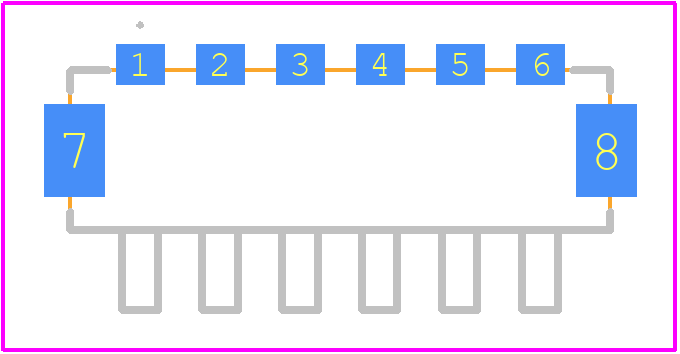

009155006741006 - Kyocera AVX PCB footprint - Other - Other - 009155006741006-2
click to zoom
3D Models
009155006741006 - Kyocera AVX - 3D model - Other - 009155006741006-2
click to zoom

009155006741006 Details

  • Manufacturer Part Number:

    009155006741006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    12

  • Board Mounting Option:

    COMPLIANT BOARDLOCK

  • Body Breadth:

    0.15 inch

  • Body Depth:

    0.177 inch

  • Body Length:

    0.531 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    COMPRESSION

  • Durability:

    5000 Cycles

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE46

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Packing Method:

    TR

  • Plating Thickness:

    16u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0
