Part Image

009159003551906 - Kyocera AVX

Description: Board to Board & Mezzanine Connectors Top Mount Card Edge 3POS

Download 009159003551906 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

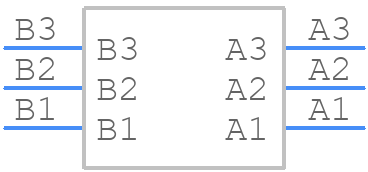

009159003551906 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

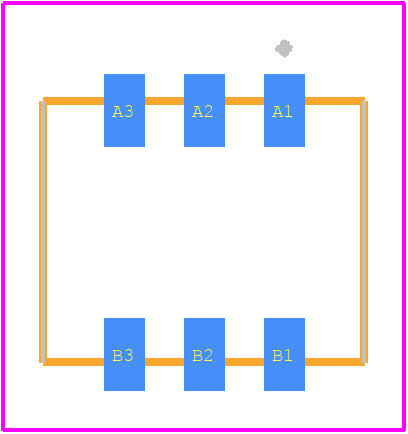

009159003551906 - Kyocera AVX PCB footprint - Other - Other - 009159003551906-1
click to zoom
3D Models
009159003551906 - Kyocera AVX - 3D model - Other - 009159003551906-1
click to zoom

009159003551906 Details

  • Manufacturer Part Number:

    009159003551906

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    4

  • Body Breadth:

    0.22 inch

  • Body Depth:

    0.197 inch

  • Body Length:

    0.315 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Durability:

    10 Cycles

  • Filter Feature:

    NO

  • Insulator Color:

    WHITE

  • Insulator Material:

    GLASS FILLED POLYAMIDE4T

  • Mating Contact Pitch:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    6.1 mm

  • Packing Method:

    TR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

009159003551906 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 009159003551906 can be found in the Kyocera AVX Components' application note AN1002, which provides guidelines for PCB layout and land pattern design.
  • The 009159003551906 is a moisture-sensitive device and requires proper handling and storage to prevent damage. It is recommended to follow the IPC/JEDEC J-STD-033 standard for handling and storage of moisture-sensitive devices.
  • The maximum reflow temperature for the 009159003551906 is 260°C, as specified in the datasheet. However, it is recommended to follow the recommended reflow profile provided by Kyocera AVX Components to ensure optimal performance and reliability.
  • The 009159003551906 is designed to withstand moderate vibration levels, but it is recommended to consult with Kyocera AVX Components' application engineers to determine the component's suitability for high-vibration environments.
  • The 009159003551906 is not specifically designed for radiation-hardened applications. If radiation tolerance is a requirement, it is recommended to consult with Kyocera AVX Components' application engineers to determine the component's suitability for radiation-prone environments.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

009159003551906 Overview

Use the download button to access the 009159003551906 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 00915, or try a keyword search, such as Headers and Edge Type Connectors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
