009176001001906 - Kyocera AVX

Description: Headers & Wire Housings 1Way 18AWG 300V 10A WTB White

Download 009176001001906 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
009176001001906 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

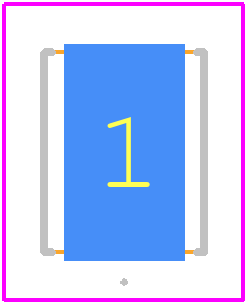

009176001001906 - Kyocera AVX PCB footprint - Other - Other - 009176001001906-1
click to zoom
3D Models
009176001001906 - Kyocera AVX - 3D model - Other - 009176001001906-1
click to zoom

009176001001906 Details

  • Manufacturer Part Number:

    009176001001906

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.98

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.2 inch

  • Body Length:

    0.147 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    PURE TIN OVER NICKEL

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    IDC

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE46

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR

  • Rated Current (Signal):

    10 A

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    1

  • UL Flammability Code:

    94V-0

009176001001906 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 009176001001906 can be found in the Kyocera AVX Components' recommended land pattern document or by contacting their technical support team.
  • To prevent damage, handle the component by the edges, avoid touching the pads or components, and use an ESD wrist strap or mat to prevent electrostatic discharge.
  • The maximum reflow temperature for the 009176001001906 is typically 260°C, but it's recommended to consult the datasheet or contact Kyocera AVX Components' technical support for specific guidance.
  • The 009176001001906 is designed to meet standard vibration requirements, but for high-vibration environments, it's recommended to consult with Kyocera AVX Components' technical support to determine the component's suitability.
  • Store the 009176001001906 in its original packaging, in a dry, cool place, away from direct sunlight, and avoid exposing it to moisture or extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

009176001001906 Overview

Use the download button to access the 009176001001906 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 00917, or try a keyword search, such as Combination Line Connectors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
