009176001032006 - Kyocera AVX

Description: Headers & Wire Housings 1 WAY WIRE TO BD 24A WG STRANDED

Download 009176001032006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
009176001032006 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

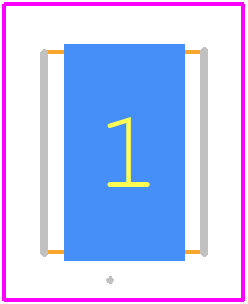

009176001032006 - Kyocera AVX PCB footprint - Other - Other - 009176001032006-1
click to zoom
3D Models
009176001032006 - Kyocera AVX - 3D model - Other - 009176001032006-1
click to zoom

009176001032006 Details

  • Manufacturer Part Number:

    009176001032006

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.98

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.201 inch

  • Body Length:

    0.197 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    PURE TIN OVER NICKEL

  • Contact Finish Termination:

    PURE TIN OVER NICKEL

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    IDC

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE46

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR

  • Rated Current (Signal):

    10 A

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    1

009176001032006 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 009176001032006 can be found in the Kyocera AVX Components' application note or by contacting their technical support team.
  • The 009176001032006 is rated for operation up to 125°C, but its performance may degrade at higher temperatures. Consult the datasheet for specific temperature derating information.
  • The maximum recommended voltage derating for the 009176001032006 is 80% of the rated voltage. Exceeding this may reduce the component's lifespan or cause premature failure.
  • The 009176001032006 is designed to withstand moderate vibration, but extreme vibration may affect its performance. Consult the datasheet or contact Kyocera AVX Components for specific vibration testing data.
  • The recommended soldering profile for the 009176001032006 can be found in the Kyocera AVX Components' application note or by contacting their technical support team.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

009176001032006 Overview

Use the download button to access the 009176001032006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 00917, or try a keyword search, such as Combination Line Connectors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
