009176002011906 footprint, schematic symbol and 3D model by Kyocera AVX

Symbol

click to zoom

PCB Footprints

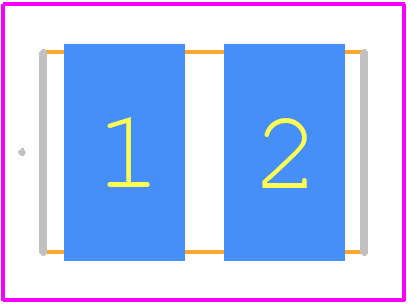

009176002011906 - Kyocera AVX PCB footprint - Other - Other - 009176002011906-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 009176002011906
Part Number 009176002011906
Manufacturer Kyocera AVX
Pin Count 2
Part Category Connector
Package Category Other
Footprint Name Other - 009176002011906-2
Released Date Feb 5, 2025
Last Modified Date Feb 5, 2025 10:19 PM UTC
Pinout / Pin List Click Here (Member Only)

009176002011906 Details

Manufacturer Part Number:
009176002011906
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
8 Weeks
Manufacturer:
Kyocera AVX Components
YTEOL:
7.72
Body Breadth:
0.197 inch
Body Depth:
0.2 inch
Body Length:
0.315 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED
Contact Style:
IDC
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
POLYAMIDE46
Mixed Contacts:
NO
Mounting Type:
BOARD
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Packing Method:
TR
Rated Current (Signal):
10 A
Reference Standard:
UL
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
2
UL Flammability Code:
94V-0

009176002011906 Frequently Asked Questions (FAQs)

The recommended land pattern for the 009176002011906 can be found in the Kyocera AVX Components' recommended land pattern document, which is usually available on their website or through their customer support. It's essential to follow the recommended land pattern to ensure proper soldering and component reliability.
To prevent damage, it's recommended to handle the 009176002011906 component by the edges, avoiding touching the terminations or the ceramic body. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage. Additionally, avoid bending or flexing the component during assembly.
The maximum allowable voltage derating for the 009176002011906 can be found in the datasheet or by consulting with Kyocera AVX Components' application engineers. As a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation and prevent premature failure.
The 009176002011906 is rated for operation up to a certain temperature range, which is specified in the datasheet. However, it's essential to consider the component's temperature derating, thermal resistance, and other thermal characteristics to ensure reliable operation in high-temperature environments. Consult with Kyocera AVX Components' application engineers for specific guidance.
To troubleshoot issues with the 009176002011906, start by reviewing the datasheet and application notes. Check for proper assembly, soldering, and handling. Use diagnostic tools such as oscilloscopes, signal generators, and multimeters to identify the root cause of the issue. If necessary, consult with Kyocera AVX Components' technical support or application engineers for further assistance.

Trust Checks

Community Provided

System Verified

Community Approved

009176002011906 Overview

Use the download button to access the 009176002011906 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 00917, or try a keyword search, such as Combination Line Connectors
