009176002022006 footprint, schematic symbol and 3D model by Kyocera AVX

Symbol

click to zoom

PCB Footprints

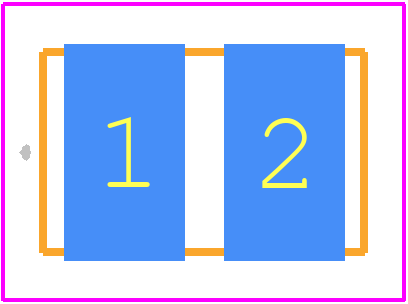

009176002022006 - Kyocera AVX PCB footprint - Other - Other - 009176002022006-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 009176002022006
Part Number 009176002022006
Manufacturer Kyocera AVX
Pin Count 2
Part Category Connector
Package Category Other
Footprint Name Other - 009176002022006-2
Released Date Jan 22, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

009176002022006 Details

Manufacturer Part Number:
009176002022006
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
8 Weeks
Manufacturer:
Kyocera AVX Components
YTEOL:
6.98
Body Breadth:
0.197 inch
Body Depth:
0.201 inch
Body Length:
0.315 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
PURE TIN OVER NICKEL
Contact Finish Termination:
PURE TIN OVER NICKEL
Contact Material:
PHOSPHOR BRONZE
Contact Style:
IDC
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYAMIDE46
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Packing Method:
TR
Rated Current (Signal):
10 A
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
2

009176002022006 Frequently Asked Questions (FAQs)

The recommended land pattern for the 009176002022006 can be found in the Kyocera AVX Components' application note or by contacting their technical support team.
While the datasheet provides temperature ratings, the component's performance in high-temperature environments may vary. It's recommended to consult with Kyocera AVX Components' technical support team for specific guidance.
Yes, the component may require special handling and storage procedures to prevent damage. It's recommended to follow the guidelines outlined in the datasheet or provided by Kyocera AVX Components' technical support team.
The component's performance in high-vibration environments may vary. It's recommended to consult with Kyocera AVX Components' technical support team to determine its suitability for such applications.
Kyocera AVX Components may offer equivalent or substitute components, but it's recommended to consult with their technical support team to determine the best alternative for specific applications.

Trust Checks

Expert Contribution

System Verified

Community Approved

009176002022006 Overview

Use the download button to access the 009176002022006 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 00917, or try a keyword search, such as Combination Line Connectors
