009176002032006 footprint, schematic symbol and 3D model by Kyocera AVX

Symbol

click to zoom

PCB Footprints

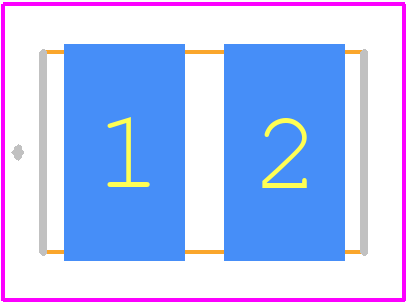

009176002032006 - Kyocera AVX PCB footprint - Other - Other - 009176002032006-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 009176002032006
Part Number 009176002032006
Manufacturer Kyocera AVX
Pin Count 2
Part Category Connector
Package Category Other
Footprint Name Other - 009176002032006-1
Released Date Jul 17, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

009176002032006 Details

Manufacturer Part Number:
009176002032006
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
8 Weeks
Manufacturer:
Kyocera AVX Components
YTEOL:
6.98
Body Breadth:
0.197 inch
Body Depth:
0.201 inch
Body Length:
0.315 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
PURE TIN OVER NICKEL
Contact Finish Termination:
PURE TIN OVER NICKEL
Contact Material:
PHOSPHOR BRONZE
Contact Style:
IDC
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYAMIDE46
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Packing Method:
TR
Rated Current (Signal):
10 A
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
2

009176002032006 Frequently Asked Questions (FAQs)

The recommended land pattern for the 009176002032006 can be found in the Kyocera AVX Components' application note or by contacting their technical support team.
Handle the component by the body, avoid touching the leads or the ceramic capacitor, and use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
The maximum voltage derating for the 009176002032006 is typically 80% of the rated voltage, but it's recommended to consult with Kyocera AVX Components' technical support team for specific guidance.
The 009176002032006 is rated for operation up to 125°C, but it's recommended to consult with Kyocera AVX Components' technical support team for specific guidance on high-temperature applications.
The ESR of the 009176002032006 can be determined by consulting the datasheet or by contacting Kyocera AVX Components' technical support team for specific guidance.

Trust Checks

Community Provided

System Verified

Community Approved

009176002032006 Overview

Use the download button to access the 009176002032006 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 00917, or try a keyword search, such as Combination Line Connectors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
