009176002701906 - Kyocera AVX

Description: Headers & Wire Housings 2Way 18AWG 300V 10A WTB Capped White

Download 009176002701906 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
009176002701906 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

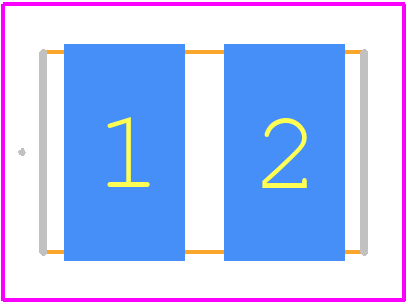

009176002701906 - Kyocera AVX PCB footprint - Other - Other - 009176002701906-1
click to zoom
3D Models
009176002701906 - Kyocera AVX - 3D model - Other - 009176002701906-1
click to zoom

009176002701906 Details

  • Manufacturer Part Number:

    009176002701906

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    7.72

  • Body Breadth:

    0.22 inch

  • Body Depth:

    0.197 inch

  • Body Length:

    0.315 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    IDC

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR

  • Rated Current (Signal):

    10 A

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    2

  • UL Flammability Code:

    94V-0

009176002701906 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 009176002701906 can be found in the Kyocera AVX Components' application note or by contacting their technical support team.
  • Handle the component by the body, avoid touching the leads or the ceramic capacitor, and use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
  • The maximum voltage derating for the 009176002701906 is typically 80% of the rated voltage, but it's recommended to consult the datasheet or contact Kyocera AVX Components for specific guidance.
  • The 009176002701906 is rated for operation up to 125°C, but it's recommended to consult the datasheet or contact Kyocera AVX Components for specific guidance on high-temperature applications.
  • Store the component in its original packaging, away from direct sunlight, moisture, and extreme temperatures, and follow the storage guidelines provided by Kyocera AVX Components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

009176002701906 Overview

Use the download button to access the 009176002701906 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 00917, or try a keyword search, such as Combination Line Connectors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
