009176003022006 footprint, schematic symbol and 3D model by Kyocera AVX

Symbol

click to zoom

PCB Footprints

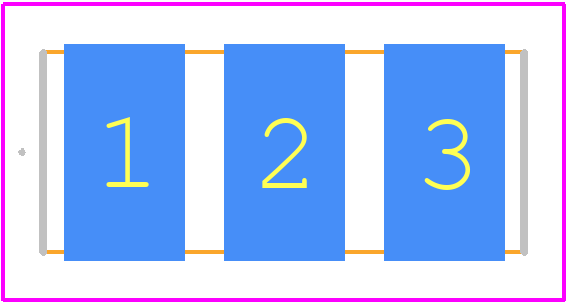

009176003022006 - Kyocera AVX PCB footprint - Other - Other - 009176003022006-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 009176003022006
Part Number 009176003022006
Manufacturer Kyocera AVX
Pin Count 3
Part Category Connector
Package Category Other
Footprint Name Other - 009176003022006-1
Released Date Feb 22, 2024
Last Modified Date Feb 23, 2024 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

009176003022006 Details

Manufacturer Part Number:
009176003022006
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
8 Weeks
Manufacturer:
Kyocera AVX Components
YTEOL:
6.98
Body Breadth:
0.197 inch
Body Depth:
0.201 inch
Body Length:
0.472 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
PURE TIN OVER NICKEL
Contact Finish Termination:
PURE TIN OVER NICKEL
Contact Material:
PHOSPHOR BRONZE
Contact Style:
IDC
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYAMIDE46
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Packing Method:
TR
Rated Current (Signal):
10 A
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
3

009176003022006 Frequently Asked Questions (FAQs)

The recommended land pattern for the 009176003022006 can be found in the Kyocera AVX Components' application note AN1002, which provides guidelines for PCB layout and land pattern design.
The 009176003022006 is a moisture-sensitive device, and it's recommended to follow the guidelines outlined in the IPC/JEDEC J-STD-033 standard for handling and storage to prevent moisture-related damage.
The maximum reflow temperature for the 009176003022006 is 260°C, as specified in the datasheet. However, it's recommended to follow the temperature profile recommended by Kyocera AVX Components to ensure reliable soldering.
The 009176003022006 is designed to withstand moderate vibration, but it's recommended to consult with Kyocera AVX Components' application engineers to determine the component's suitability for high-vibration environments.
The 009176003022006 has a human body model (HBM) ESD rating of 2 kV, and it's recommended to follow proper ESD handling and storage procedures to prevent damage.

Trust Checks

Community Provided

System Verified

Community Approved

009176003022006 Overview

Use the download button to access the 009176003022006 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 00917, or try a keyword search, such as Combination Line Connectors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
