009176003701906 footprint, schematic symbol and 3D model by Kyocera AVX

Symbol

click to zoom

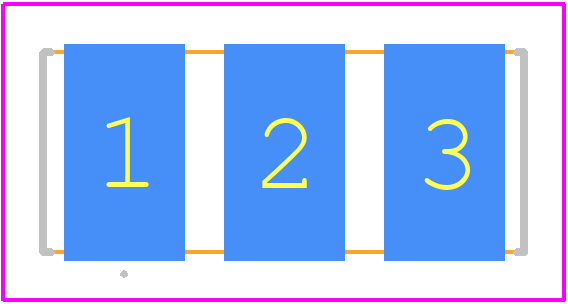

PCB Footprints

009176003701906 - Kyocera AVX PCB footprint - Other - Other - 009176003701906-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 009176003701906
Part Number 009176003701906
Manufacturer Kyocera AVX
Pin Count 3
Part Category Connector
Package Category Other
Footprint Name Other - 009176003701906-2
Released Date Nov 6, 2022
Last Modified Date Apr 2, 2024 12:57 PM UTC
Pinout / Pin List Click Here (Member Only)

009176003701906 Details

Manufacturer Part Number:
009176003701906
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
10 Weeks
Manufacturer:
Kyocera AVX Components
YTEOL:
8
Body Breadth:
0.22 inch
Body Depth:
0.197 inch
Body Length:
0.472 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL
Contact Finish Termination:
TIN OVER NICKEL
Contact Material:
PHOSPHOR BRONZE
Contact Style:
IDC
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
GLASS FILLED POLYAMIDE
JESD-609 Code:
e3
Mixed Contacts:
NO
Mounting Type:
BOARD
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Packing Method:
TR
Rated Current (Signal):
10 A
Reference Standard:
UL
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
3
UL Flammability Code:
94V-0

009176003701906 Frequently Asked Questions (FAQs)

The recommended land pattern for the 009176003701906 can be found in the Kyocera AVX Components' recommended land pattern document or by contacting their technical support team.
Handle the component by the edges, avoid touching the pads or components, and use an ESD wrist strap or mat to prevent electrostatic discharge damage.
The maximum reflow temperature for the 009176003701906 is typically 260°C, but it's recommended to consult the datasheet or contact Kyocera AVX Components' technical support for specific guidance.
The 009176003701906 is designed for general-purpose use, but its suitability for high-vibration or high-shock environments depends on the specific application. Consult Kyocera AVX Components' technical support or perform additional testing to ensure reliability.
The MSL for the 009176003701906 is typically level 3, but it's recommended to consult the datasheet or contact Kyocera AVX Components' technical support for specific guidance on handling and storage.

Trust Checks

Community Provided

System Verified

Community Approved

009176003701906 Overview

Use the download button to access the 009176003701906 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 00917, or try a keyword search, such as Combination Line Connectors
