- Part Number 009296001202506
- Manufacturer Kyocera AVX
- Pin Count 2
- Part Category Connector
- Package Category Other

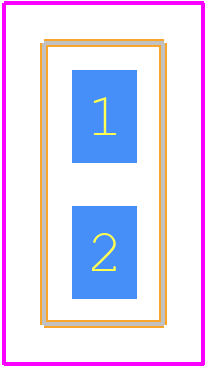

- Footprint Name Other - 009296001202506-1
- Released Date Feb 14, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
009296001202506 Details
-
Manufacturer Part Number:
009296001202506
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active Unconfirmed
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
8 Weeks
-
Manufacturer:
Kyocera AVX Components
-
YTEOL:
8
-
Body Breadth:
0.098 inch
-
Body Depth:
0.278 inch
-
Body Length:
0.118 inch
009296001202506 Frequently Asked Questions (FAQs)
-
The recommended land pattern for the 009296001202506 can be found in the Kyocera AVX Components' recommended land pattern document, which is usually available on their website or through their customer support. It's essential to follow the recommended land pattern to ensure proper soldering and component reliability.
-
While the datasheet provides some information on the component's operating temperature range, it's essential to consult with Kyocera AVX Components' application notes or technical support to understand the component's behavior in high-temperature environments. They may be able to provide additional information on the component's thermal derating, reliability, and potential degradation.
-
The MSL rating is not typically included in the datasheet. According to industry standards, it's essential to handle components with care to prevent moisture-related damage. Kyocera AVX Components may provide the MSL rating through their customer support or documentation. It's crucial to follow proper handling and storage procedures to prevent damage.
-
While the datasheet may not provide specific information on vibration tolerance, Kyocera AVX Components may have application notes or technical support that can provide guidance on the component's reliability in high-vibration environments. It's essential to consult with them to determine the component's suitability for your specific application.
-
Kyocera AVX Components typically provides information on lead-free and RoHS compliance through their documentation or customer support. The 009296001202506 component is likely to be lead-free and RoHS compliant, but it's essential to verify this information to ensure compliance with regulatory requirements.
