02021601601 - HARTING

Description: har-bus 64 female straight 160pin, press-in, PL1 - 3.7mm tails

Download 02021601601 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
02021601601 - HARTING - PCB symbol
click to zoom
PCB Footprints

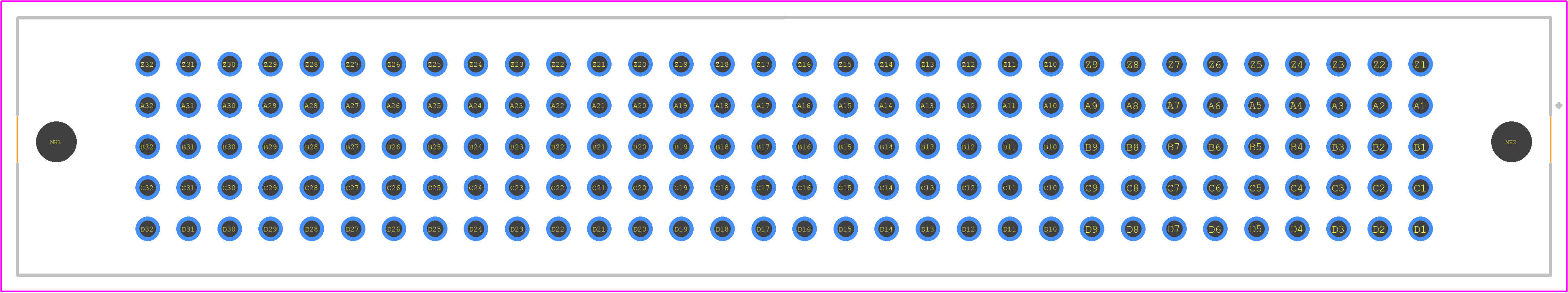

02021601601 - HARTING PCB footprint - Other - Other - 02021601601_1
click to zoom
3D Models
02021601601 - HARTING - 3D model - Other - 02021601601_1
click to zoom

02021601601 Details

  • Manufacturer Part Number:

    02021601601

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Body Breadth:

    0.626 inch

  • Body Depth:

    0.456 inch

  • Body Length:

    3.732 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    5

  • Number of Rows Loaded:

    5

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    160
