02021602601 - HARTING

Description: Connectors, Female connector, Press-in termination, Rated current: ‌1 A, Contacts: 160, Straight, Copper alloy, Noble metal, Mating side, Nickel plated, Termination side, Performance level: 2, acc. to IEC 61076-4-113, PCB fixing: With fixing flange, Liquid crystal polymer (LCP), Beige

Download 02021602601 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
02021602601 - HARTING - PCB symbol
click to zoom
PCB Footprints

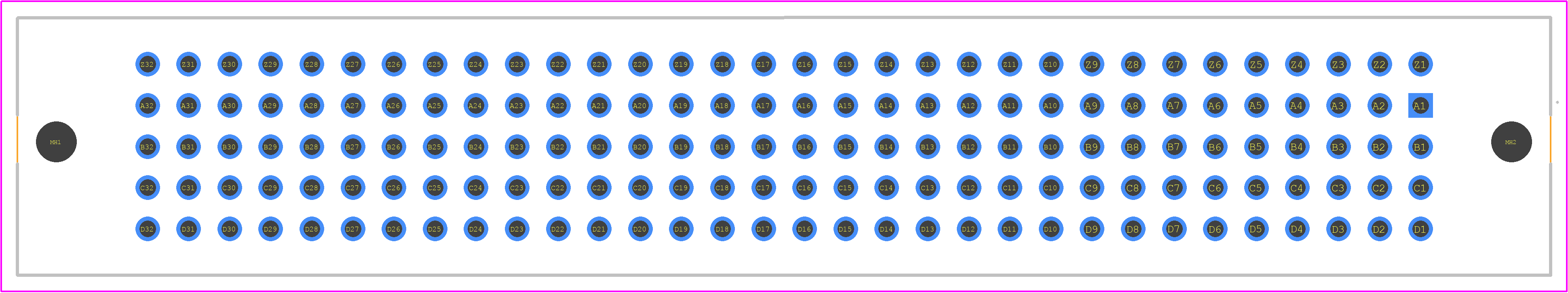

02021602601 - HARTING PCB footprint - Other - Other - 02021602601
click to zoom
3D Models
02021602601 - HARTING - 3D model - Other - 02021602601
click to zoom

02021602601 Details

  • Manufacturer Part Number:

    02021602601

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

02021602601 Overview

Use the download button to access the 02021602601 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 02021, or try a keyword search, such as Headers and Edge Type Connectors
