02031602201 - HARTING

Description: har-bus 64 female straight 160pin, press-in, with switches, PL2

Download 02031602201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
02031602201 - HARTING - PCB symbol
click to zoom
PCB Footprints

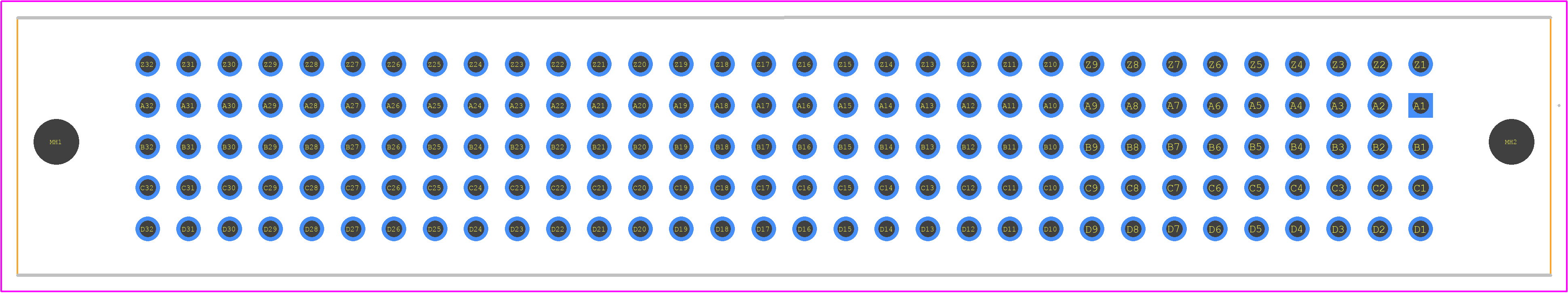

02031602201 - HARTING PCB footprint - Other - Other - 02031602201-20
click to zoom
3D Models
02031602201 - HARTING - 3D model - Other - 02031602201-20
click to zoom

02031602201 Details

  • Manufacturer Part Number:

    02031602201

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    5

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    160

02031602201 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the HARTING application notes for specific guidance.
  • Yes, the 02031602201 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure locking to prevent connector damage.
  • The 02031602201 connector is part of the HARTING Han series, which is a modular connector system. It is compatible with other Han series connectors, but compatibility with other HARTING connector series should be verified before use.
  • The 02031602201 connector is rated for operation in temperatures ranging from -40°C to 125°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 02031602201 connector is designed to be resistant to environmental factors, including humidity and chemicals. However, it's crucial to consult the HARTING datasheet and application notes for specific guidance on environmental considerations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

02031602201 Overview

Use the download button to access the 02031602201 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 02031, or try a keyword search, such as Headers and Edge Type Connectors
