02040481101 - HARTING

Description: har-bus 64 (DIN 5row) female angled 48pin, solder, PL1

Download 02040481101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

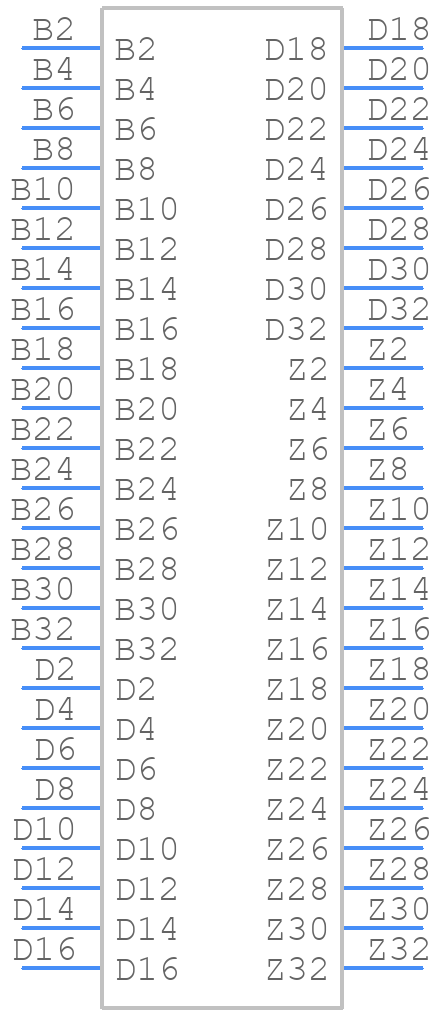

02040481101 - HARTING - PCB symbol
click to zoom
PCB Footprints

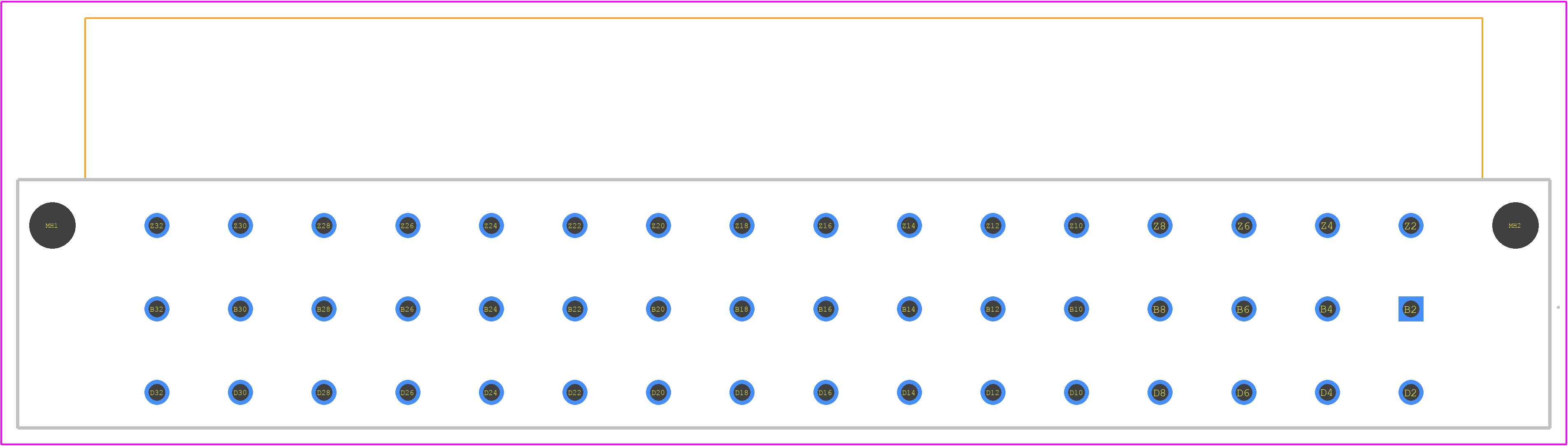

02040481101 - HARTING PCB footprint - Other - Other - 02040481101_1
click to zoom
3D Models
02040481101 - HARTING - 3D model - Other - 02040481101_1
click to zoom

02040481101 Details

  • Manufacturer Part Number:

    02040481101

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

02040481101 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 02040481101 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 02040481101 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6).
  • Yes, the 02040481101 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity range of 5% to 95% RH (non-condensing).
  • The 02040481101 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 02040481101 connector is designed to be compatible with other HARTING connectors in the same series, but it's recommended to check the specific compatibility with other connectors before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

02040481101 Overview

Use the download button to access the 02040481101 schematic symbol, PCB footprint, and 3D model.
