- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 02221602201
- Part Number 02221602201
- Manufacturer HARTING
- Pin Count 162
- Part Category Connector
- Package Category Other

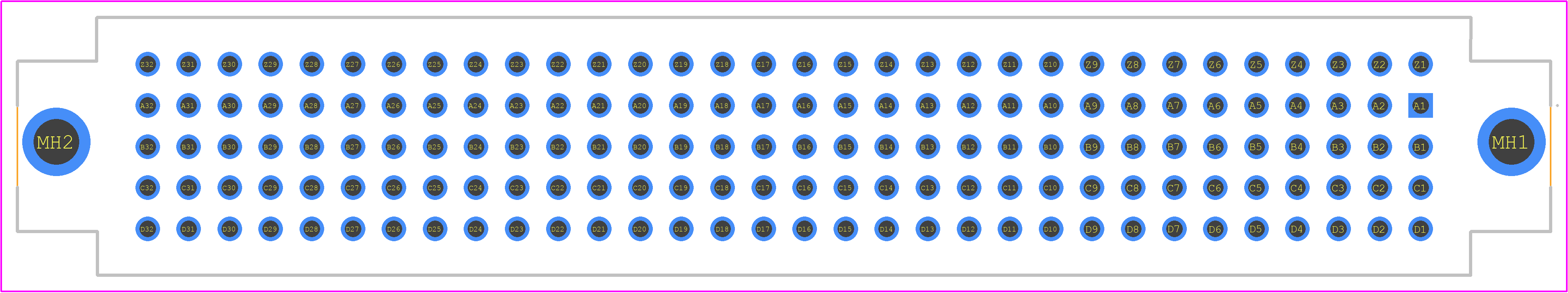

- Footprint Name Other - 02221602201-2
- Released Date Sep 2, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
02221602201 Details
-
Manufacturer Part Number:
02221602201
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
YTEOL:
0
-
Connector Type:
BOARD CONNECTOR
-
Contact Gender:
FEMALE
-
DIN Conformance:
NO
-
Filter Feature:
NO
-
IEC Conformance:
NO
02221602201 Frequently Asked Questions (FAQs)
-
The operating temperature range of the 02221602201 connector is -40°C to 125°C, as per the IEC 61984 standard.
-
Yes, the 02221602201 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g acceleration, as per the IEC 61984 standard.
-
The 02221602201 connector has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in humid or wet environments.
-
The 02221602201 connector has a mating cycle life of at least 500 cycles, as per the IEC 61984 standard.
-
Yes, the 02221602201 connector is part of the Harting Han series, which is a modular connector system. It is compatible with other Harting Han series connectors and accessories.
Trust Checks
Community Provided
System Verified
Community Approved
02221602201 Overview
Use the download button to access the 02221602201 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 02221,
or try a keyword search, such as Headers and Edge Type Connectors
