0313862001 - Molex

Description: 2.54mm Pitch, MX123 Header, 56 Circuits Shrouded Assembly, (56) 0.64mm Square Signal Pins, Harness Side Key Code G, Blue (Au Mate Side Finish)

Download 0313862001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0313862001 - Molex - PCB symbol
click to zoom
PCB Footprints

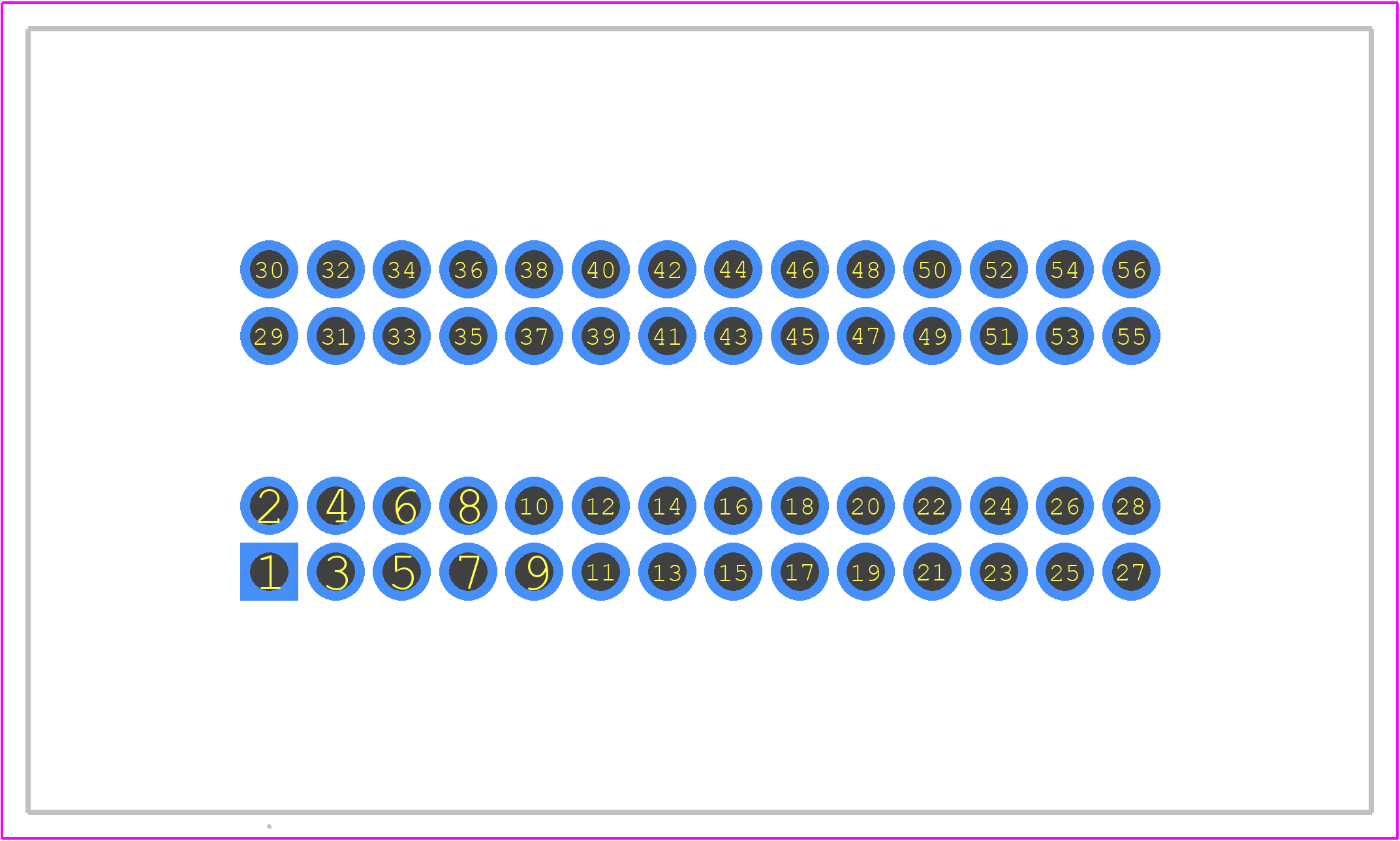

0313862001 - Molex PCB footprint - Other - Other - 0313862001-1
click to zoom
3D Models
0313862001 - Molex - 3D model - Other - 0313862001-1
click to zoom

0313862001 Details

  • Manufacturer Part Number:

    0313862001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

0313862001 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 0313862001 connector is designed to withstand vibrations up to 10G (ISO 16750-3) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 0313862001 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 0313862001 connector meets the requirements of the automotive industry and is compatible with automotive applications.
  • The mating cycle life of the 0313862001 connector is 250 cycles minimum.
