Part Image

0348269207 - Molex

Description: Mini50 Unsealed Right-Angle Header, UL 94 HB, Dual Row, 20 Circuit, Circuits 6 and 18 Voided, Polarization Option A, 2.80mm Pin Length, Black, Tube

Download 0348269207 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

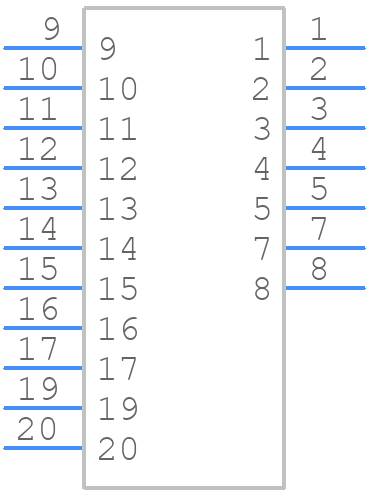

Symbol
0348269207 - Molex - PCB symbol
click to zoom

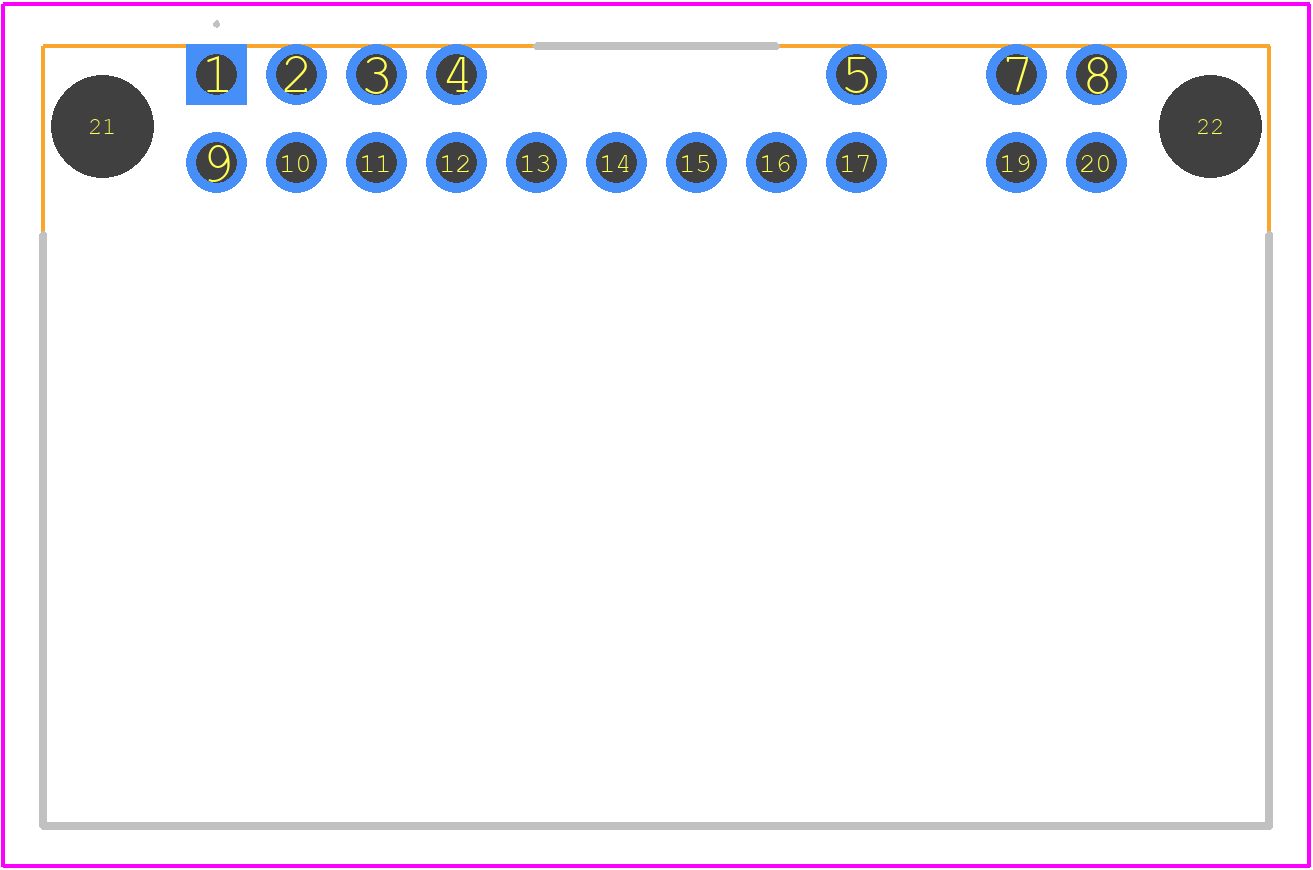

PCB Footprints
0348269207 - Molex PCB footprint - Other - Other - 0348269207-1
click to zoom

0348269207 Details

  • Manufacturer Part Number:

    0348269207

  • Manufacturer:

    Molex

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0348269207 Overview

Use the download button to access the 0348269207 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 03482, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
