0386608802 - Molex

Description: Barrier Terminal Blocks .500 TRI BARRIER 02P 600V

Download 0386608802 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0386608802 - Molex - PCB symbol
click to zoom
PCB Footprints

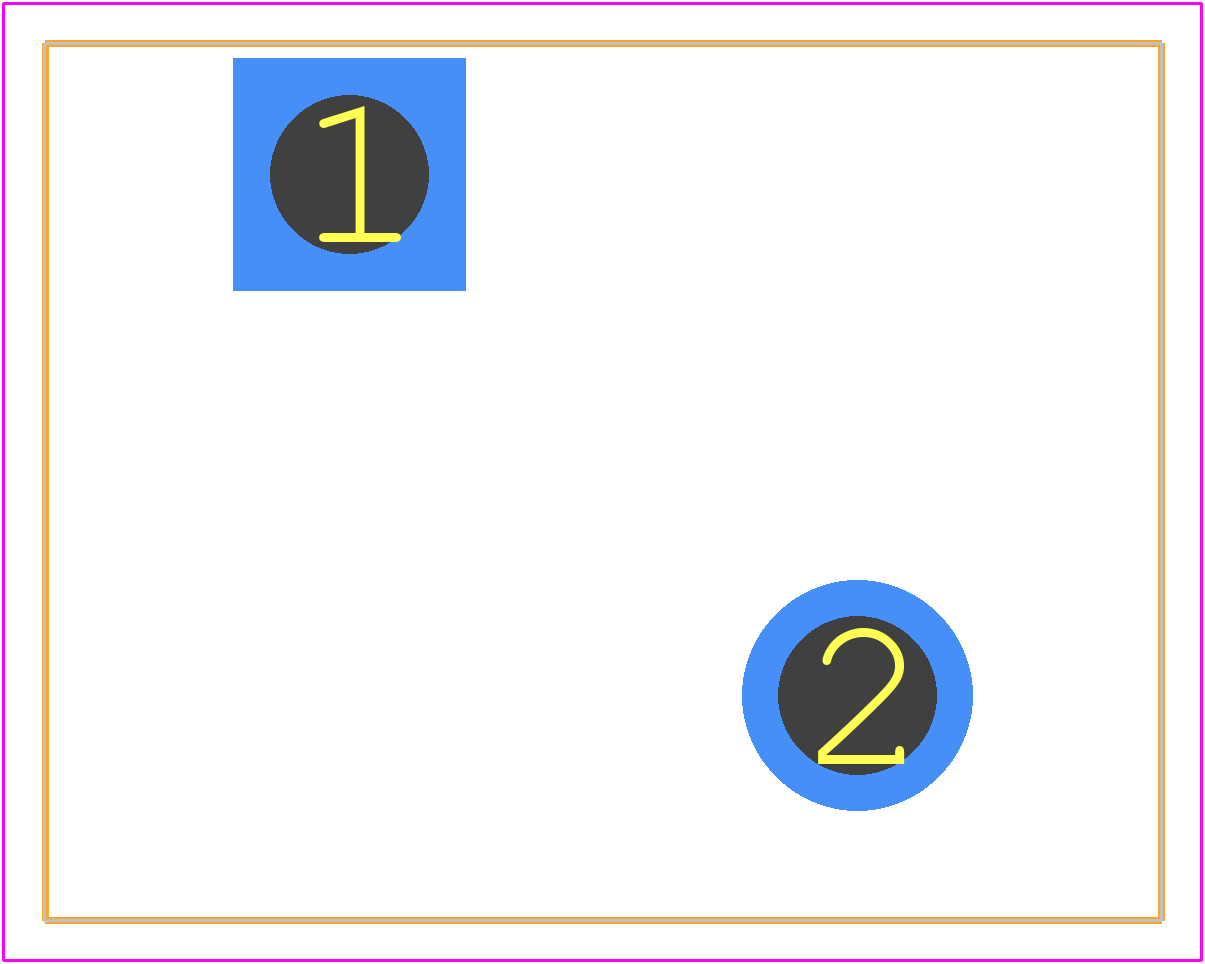

0386608802 - Molex PCB footprint - Other - Other - 0386608802-2
click to zoom
3D Models
0386608802 - Molex - 3D model - Other - 0386608802-2
click to zoom

0386608802 Details

  • Manufacturer Part Number:

    0386608802

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LOW HALOGEN AND ROHS COMPLIANT

  • Country Of Origin:

    Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks, 3 Days

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    POLYSULFONE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    45 A

  • Rated Voltage:

    600 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    6 mm2

  • Wire Gauge:

    8 AWG

0386608802 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 0386608802 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 0386608802 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 0386608802 connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
  • No, the 0386608802 connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0386608802 Overview

Use the download button to access the 0386608802 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 03866, or try a keyword search, such as Terminals and Terminal Blocks
