Description: Barrier Terminal Blocks .375 BARRIER 06P STYLE 5

Download 0387206306 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0387206306 - Molex - PCB symbol
click to zoom
PCB Footprints

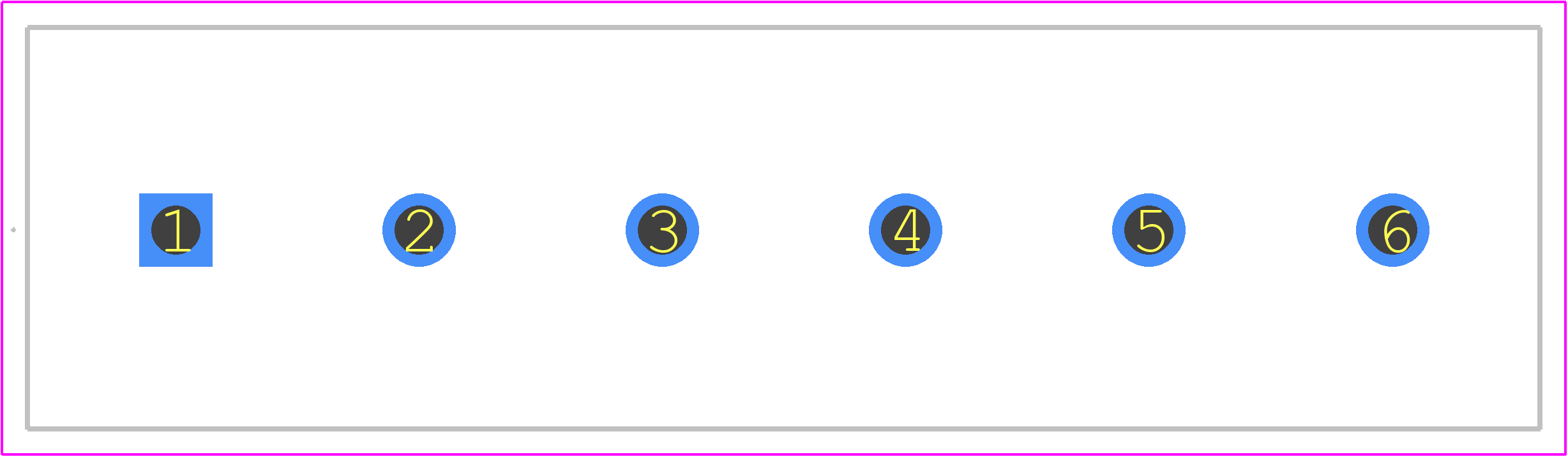

0387206306 - Molex PCB footprint - Other - Other - 0387206306-2
click to zoom
3D Models
0387206306 - Molex - 3D model - Other - 0387206306-2
click to zoom

0387206306 Details

  • Manufacturer Part Number:

    0387206306

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LOW HALOGEN AND ROHS COMPLIANT

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    POLYESTER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    14 AWG

0387206306 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
