0387207506 - Molex

Description: Conn Barrier Strip 6 POS 9.53mm Solder ST Thru-Hole 25A/Contact

Download 0387207506 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0387207506 - Molex - PCB symbol
click to zoom
PCB Footprints

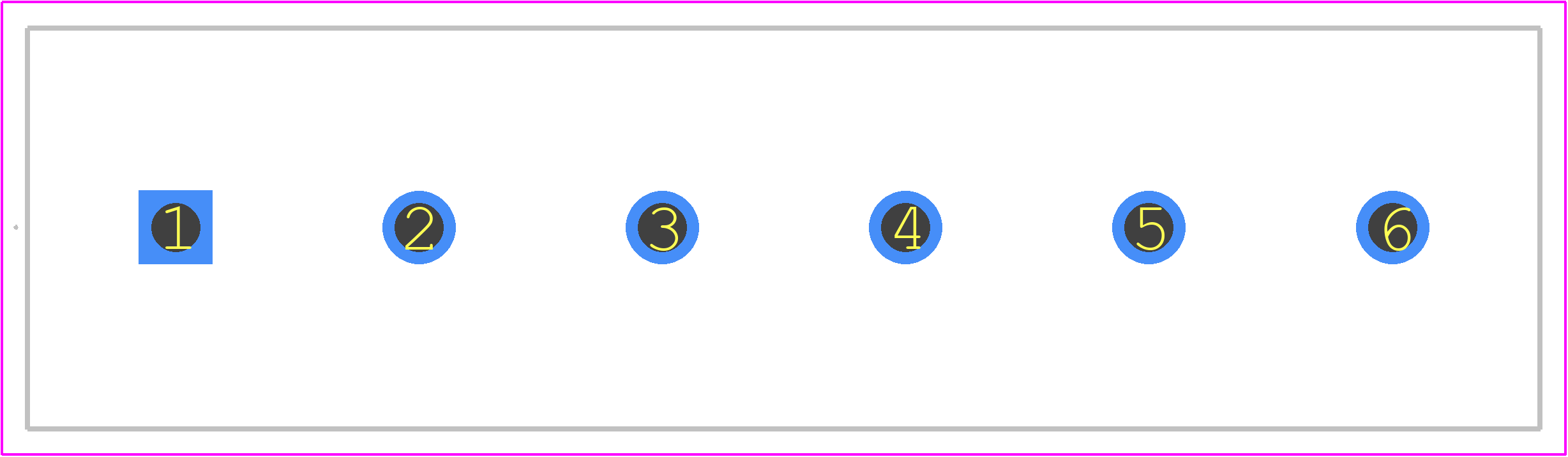

0387207506 - Molex PCB footprint - Other - Other - 0387207506-2
click to zoom
3D Models
0387207506 - Molex - 3D model - Other - 0387207506-2
click to zoom

0387207506 Details

  • Manufacturer Part Number:

    0387207506

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    POLYESTER

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    25 A

  • Rated Voltage:

    300 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

0387207506 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0387207506 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0387207506 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
  • The maximum cable bend radius for the 0387207506 connector is typically 5-10 times the cable diameter. However, it's recommended to consult Molex's application notes and cable manufacturer guidelines for specific bend radius recommendations.
  • The 0387207506 connector is designed for specific cable types and sizes. While it may be possible to use it with a different cable type or size, it's recommended to consult Molex's application notes and cable manufacturer guidelines to ensure compatibility and prevent connector damage.
  • The operating temperature range for the 0387207506 connector is typically -40°C to 105°C. However, it's recommended to consult Molex's datasheet and application notes for specific temperature range recommendations.
