0389690006 - Molex

0389690006 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 0389690006 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environmental use?
  The 0389690006 connector has a plastic housing with a moderate level of environmental protection. While it can withstand some exposure to moisture and dust, it's not recommended for direct exposure to harsh outdoor environments or extreme temperatures. For outdoor or harsh environmental use, consider using a connector with a higher IP rating or additional protection measures.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with some caution. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. Consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.

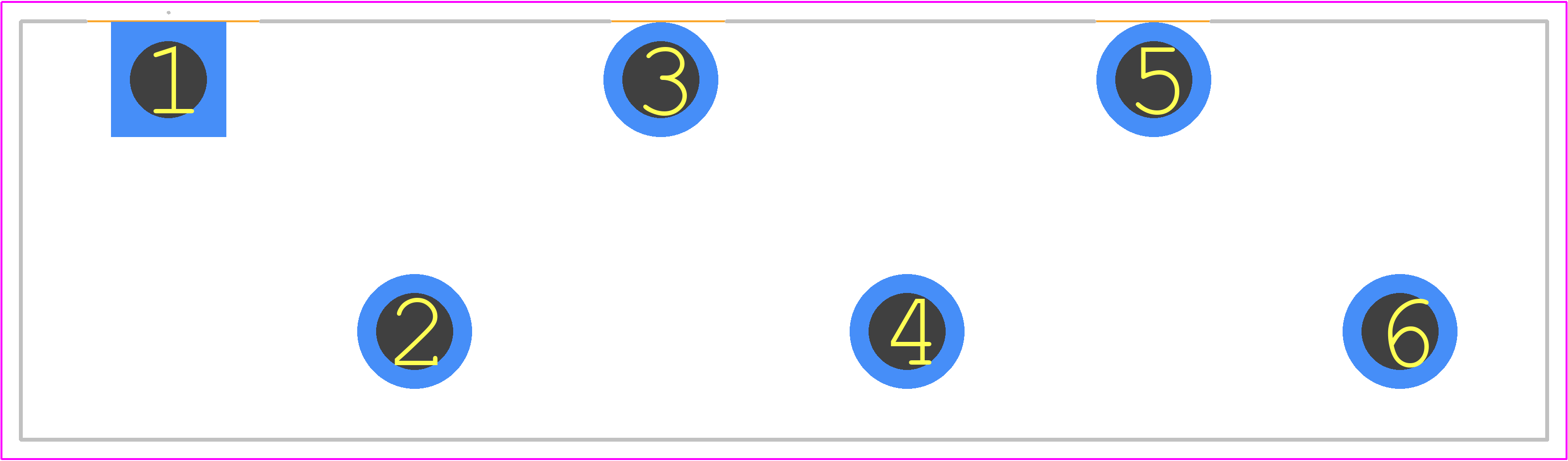

• Are there any specific PCB layout considerations for this connector?
  Yes, to ensure reliable operation and prevent damage to the connector or PCB, follow these layout considerations: maintain a minimum clearance of 1.5 mm around the connector, avoid placing components near the connector's screw terminals, and ensure the PCB is designed to accommodate the connector's height and width.
