Part Image

0393570009 - Molex

Description: 3.50mm Pitch Beau Eurostyle Fixed Mount PCB Terminal Block, 9 Circuits

Download 0393570009 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0393570009 - Molex - PCB symbol
click to zoom
PCB Footprints

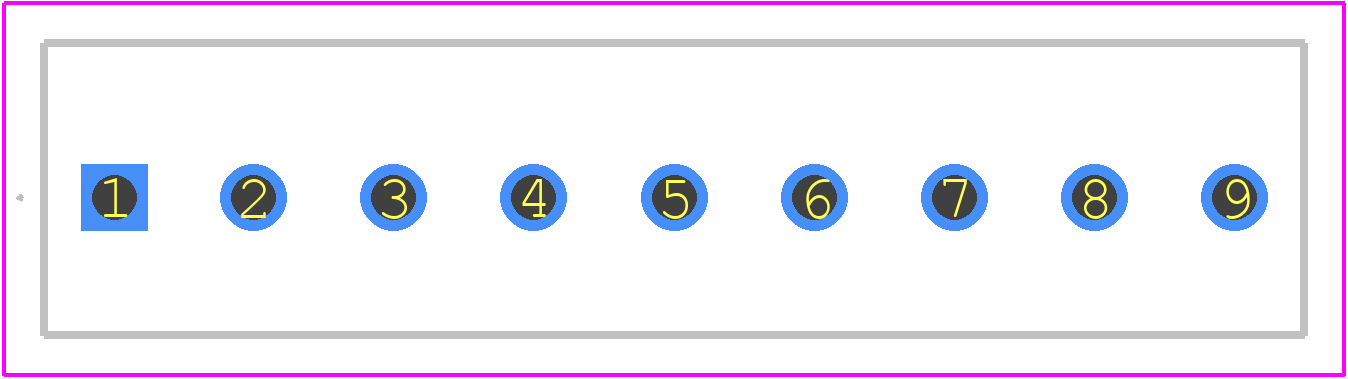

0393570009 - Molex PCB footprint - Other - Other - 0393570009-4
click to zoom
3D Models
0393570009 - Molex - 3D model - Other - 0393570009-4
click to zoom

0393570009 Details

  • Manufacturer Part Number:

    0393570009

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Italy, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6

  • Additional Feature:

    UL 94V-0, SHROUDED

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    17.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1 mm2

  • Wire Gauge:

    16 AWG

0393570009 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0393570009 connector is to mate the keying feature first, followed by the terminals. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0393570009 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum operating temperature for the 0393570009 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • Yes, the 0393570009 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
  • The recommended torque for the screw terminals on the 0393570009 connector is 0.5-1.5 Nm (4-12 in-lbs). Over-torquing may damage the terminals or the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0393570009 Overview

Use the download button to access the 0393570009 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 03935, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
