0393570020 - Molex

Description: 3.50mm Pitch Beau Eurostyle Fixed Mount PCB Terminal Block, 20 Circuits

Download 0393570020 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0393570020 - Molex - PCB symbol
click to zoom
PCB Footprints

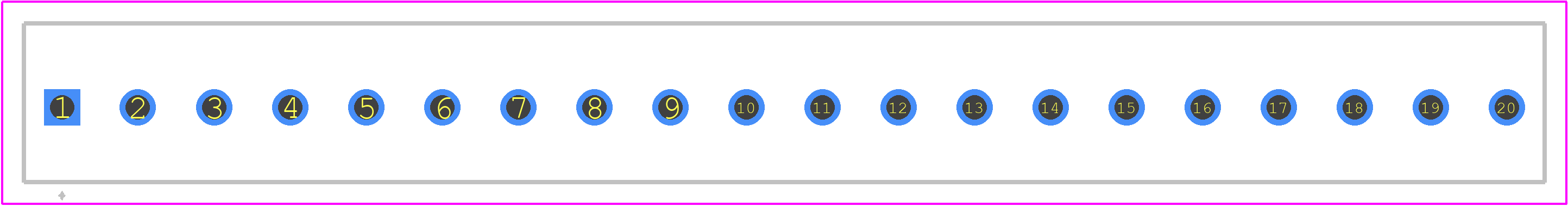

0393570020 - Molex PCB footprint - Other - Other - 0393570020-1
click to zoom
3D Models
0393570020 - Molex - 3D model - Other - 0393570020-1
click to zoom

0393570020 Details

  • Manufacturer Part Number:

    0393570020

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Italy, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Additional Feature:

    UL 94V-0, SHROUDED

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    20

  • Rated Current:

    17.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1 mm2

  • Wire Gauge:

    16 AWG

0393570020 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0393570020 connector is to mate the keying feature first, followed by the terminals, to ensure proper alignment and prevent damage to the connector.
  • Yes, the 0393570020 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
  • The maximum operating temperature for the 0393570020 connector is 125°C (257°F). However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to prevent overheating and ensure reliable operation.
  • While it's possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. The recommended wire gauge is specified in the datasheet to ensure optimal mating and to prevent damage to the connector or wire.
  • To ensure proper EMI shielding, it's recommended to use the connector's shielding features, such as the metal shell and shielding tabs, in conjunction with proper cable shielding and grounding. Additionally, follow Molex's guidelines for EMI shielding and consult with an EMI expert if necessary.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0393570020 Overview

Use the download button to access the 0393570020 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 03935, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
