0395021008 - Molex

Description: 3.50mm Pitch Eurostyle Right-Angle PCB Header, 8 Circuits

Download 0395021008 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0395021008 - Molex - PCB symbol
click to zoom
PCB Footprints

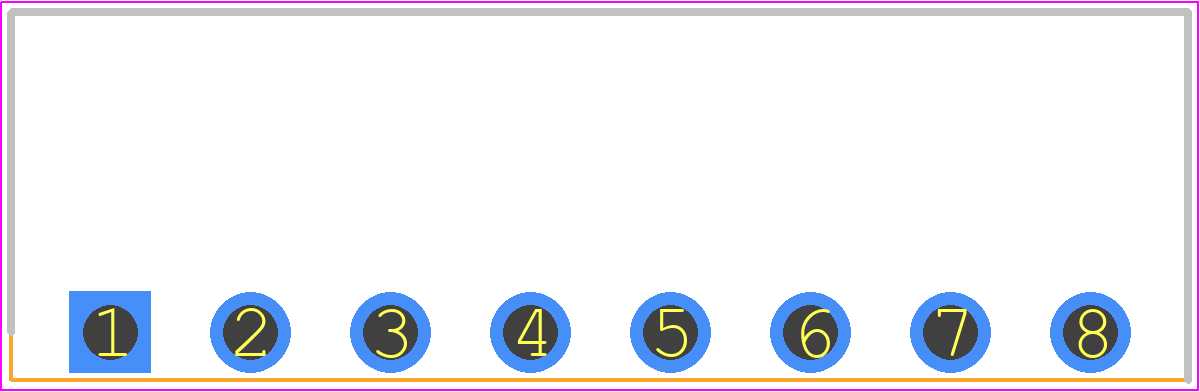

0395021008 - Molex PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 0395021008
click to zoom
3D Models
0395021008 - Molex - 3D model - Header, Shrouded - Right Angle PTH Box - 0395021008
click to zoom

0395021008 Details

  • Manufacturer Part Number:

    0395021008

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS AND REACH COMPIANT

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Molex

  • Additional Feature:

    POLARIZED, SHROUDED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

0395021008 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 0395021008 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The 0395021008 connector has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The 0395021008 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F).
  • No, the 0395021008 connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.
