0395021013 - Molex

Description: 3.50mm Pitch Eurostyle Right-Angle PCB Header, 13 Circuits

Download 0395021013 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0395021013 - Molex - PCB symbol
click to zoom

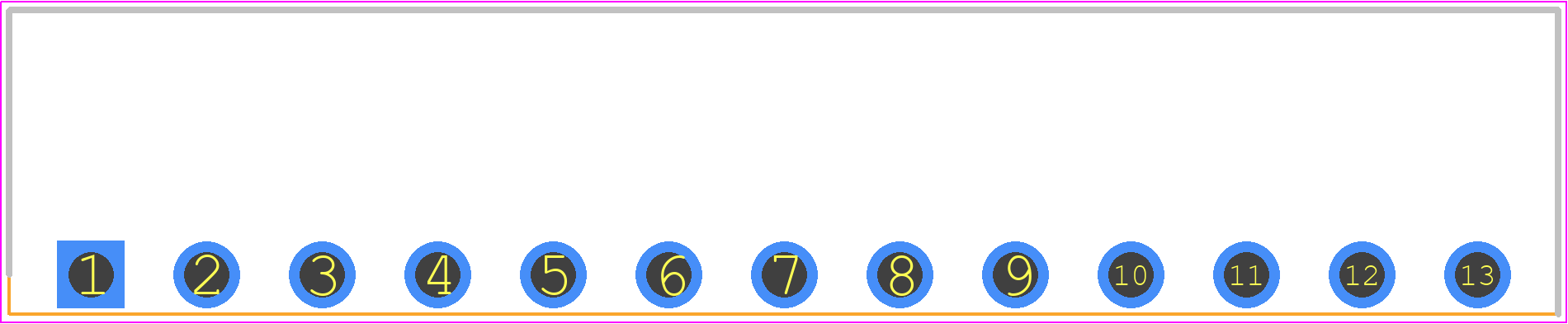

PCB Footprints
0395021013 - Molex PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 0395021013
click to zoom
3D Models
0395021013 - Molex - 3D model - Header, Shrouded - Right Angle PTH Box - 0395021013
click to zoom

0395021013 Details

  • Manufacturer Part Number:

    0395021013

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS AND REACH COMPIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Molex

  • Additional Feature:

    POLARIZED, SHROUDED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    13

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

0395021013 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0395021013 connector is to mate the keying feature first, followed by the terminals, to ensure proper alignment and prevent damage to the connector.
  • Yes, the 0395021013 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
  • The maximum operating temperature for the 0395021013 connector is 125°C (257°F), as specified in the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
  • While it's possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. The datasheet specifies a recommended wire gauge range for optimal performance, and using a different gauge may require additional testing and validation.
  • To ensure proper EMI shielding with the 0395021013 connector, follow Molex's guidelines for shielding and grounding. This may include using a shielded cable, ensuring proper contact between the shield and the connector's shielded area, and grounding the shield according to the system's EMI requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0395021013 Overview

Use the download button to access the 0395021013 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 03950, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
