0397000104 - Molex

Description: 5.08mm Pitch, Eurostyle Fixed-Mount Push-Button Terminal Block, 45° Modular, 18A, 26-14 AWG, Green, 4 Circuits

Download 0397000104 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0397000104 - Molex - PCB symbol
click to zoom
PCB Footprints

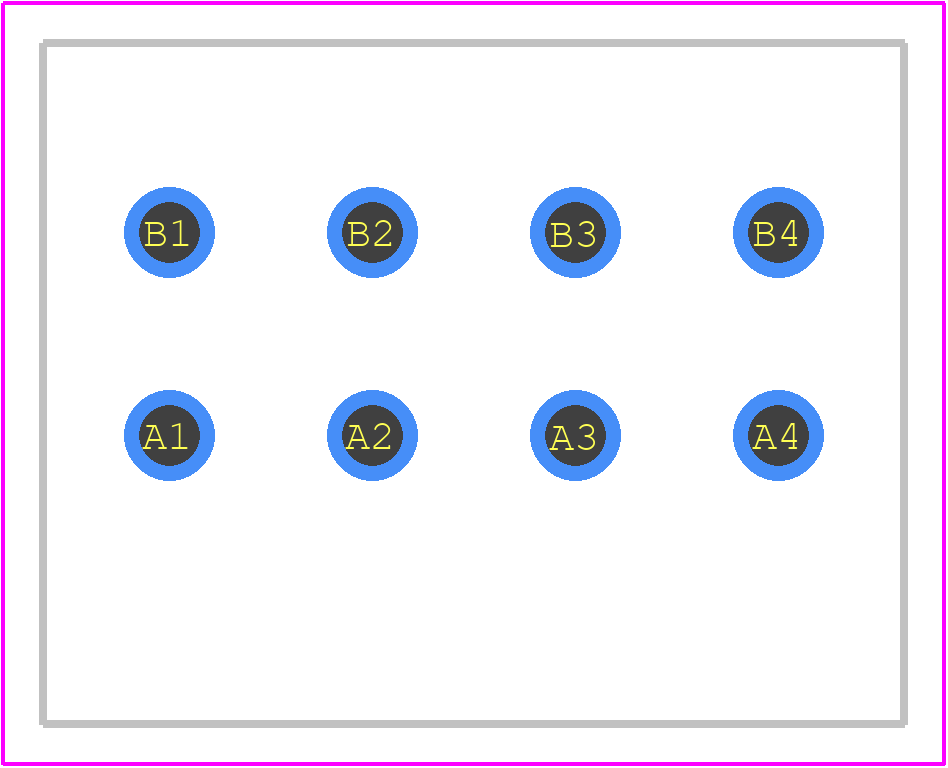

0397000104 - Molex PCB footprint - Other - Other - 0397000104-2
click to zoom
3D Models
0397000104 - Molex - 3D model - Other - 0397000104-2
click to zoom

0397000104 Details

  • Manufacturer Part Number:

    0397000104

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    PUSH BUTTON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    18 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.08 mm2

  • Wire Gauge:

    14 AWG

0397000104 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0397000104 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0397000104 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum cable bend radius for the 0397000104 connector is 10 mm. Exceeding this radius may cause damage to the cable or connector.
  • The 0397000104 connector is designed to operate in a temperature range of -40°C to 105°C and can withstand humidity up to 95%. However, it's essential to follow proper sealing and protection procedures to ensure the connector remains reliable in harsh environments.
  • The 0397000104 connector is designed for use with 24 AWG wire. Using a different wire gauge or type may affect the connector's performance and reliability. It's recommended to consult with Molex or a qualified engineer to determine the suitability of alternative wire configurations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0397000104 Overview

Use the download button to access the 0397000104 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 03970, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
