0399700106 - Molex

Description: 10.16mm Beau Eurostyle Fixed Mount PCB Terminal Block, High Power 40A, Circuits

Download 0399700106 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0399700106 - Molex - PCB symbol
click to zoom
PCB Footprints

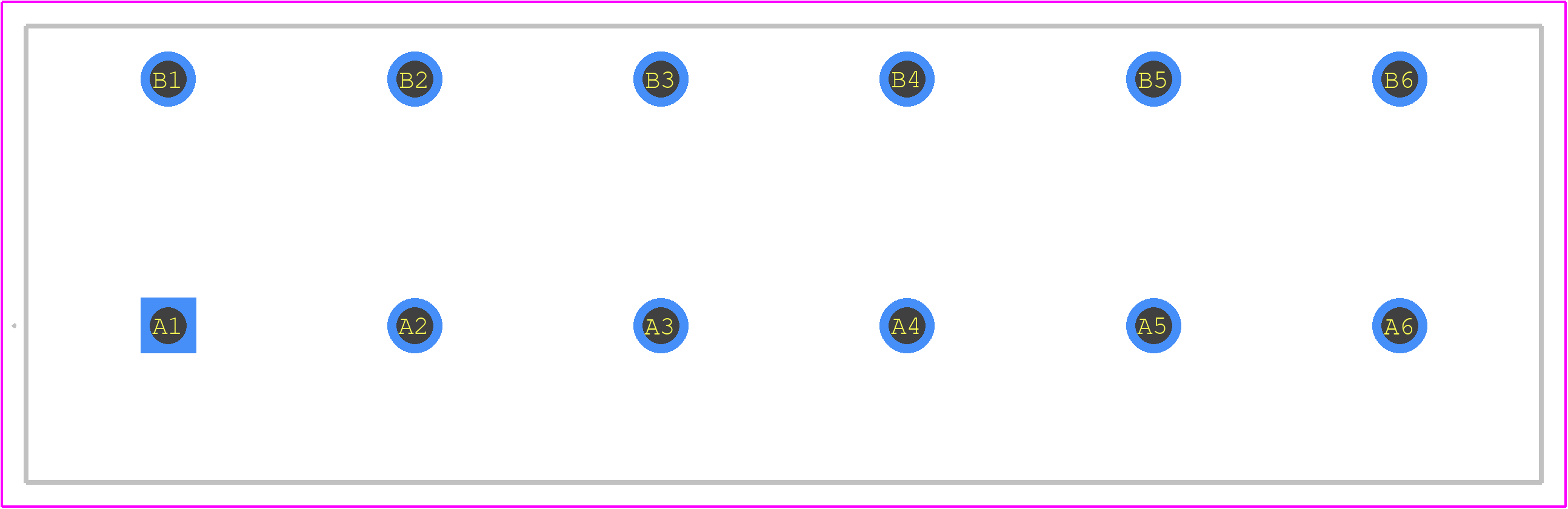

0399700106 - Molex PCB footprint - Other - Other - 0399700106-2
click to zoom
3D Models
0399700106 - Molex - 3D model - Other - 0399700106-2
click to zoom

0399700106 Details

  • Manufacturer Part Number:

    0399700106

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    UL 94V-0, SHROUDED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    60 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    10 mm2

  • Wire Gauge:

    8 AWG

0399700106 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0399700106 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0399700106 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum cable bend radius for the 0399700106 connector is typically 3-5 times the diameter of the cable. However, it's recommended to consult the specific cable manufacturer's guidelines for the most accurate information.
  • The 0399700106 connector is designed to operate in a wide range of temperatures (-40°C to 105°C) and humidity levels. However, it's essential to consult the datasheet and Molex's environmental specifications to ensure the connector meets the specific requirements of your application.
  • The 0399700106 connector is designed to work with specific wire gauges and types. While it may be possible to use it with other wire gauges or types, it's essential to consult Molex's documentation and perform thorough testing to ensure compatibility and reliability.
