Part Image

0428192214 - Molex

Description: 10.00mm Pitch Mini-Fit Sr. Header, Single Row, Vertical, 1.57mm PCB Thickness, Silver (Ag) Plating, 2 Circuits

Download 0428192214 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0428192214 - Molex - PCB symbol
click to zoom
PCB Footprints

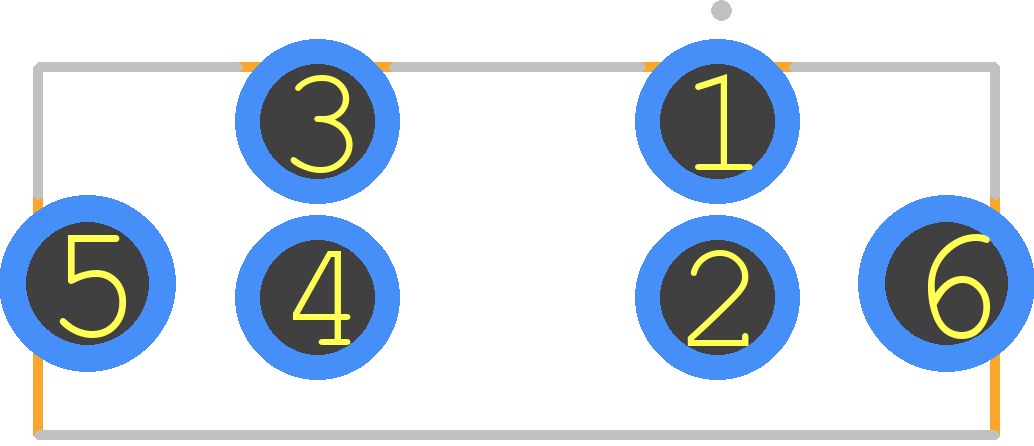

0428192214 - Molex PCB footprint - Other - Other - 0428192214
click to zoom
3D Models
0428192214 - Molex - 3D model - Other - 0428192214
click to zoom

0428192214 Details

  • Manufacturer Part Number:

    0428192214

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    6.87

  • Additional Feature:

    POLARIZED, SHROUDED

  • Body Breadth:

    0.555 inch

  • Body Depth:

    0.827 inch

  • Body Length:

    0.937 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    50 A

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

  • UL Flammability Code:

    94V-0

0428192214 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 0428192214 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • Yes, the 0428192214 connector is designed for automated assembly processes. The connector's design and packaging are optimized for pick-and-place machines, making it suitable for high-volume production.
  • The operating temperature range for the 0428192214 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector operates within this range to maintain its performance and reliability.
  • The 0428192214 connector is designed to operate in a variety of environments, including those with high humidity. However, it's essential to follow proper sealing and protection methods to ensure the connector's reliability in harsh environments. Consult the datasheet and Molex's application notes for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0428192214 Overview

Use the download button to access the 0428192214 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 04281, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
