Part Image

0428202214 - Molex

Description: 10.00mm Pitch Mini-Fit Sr. Header, Single Row, Right-Angle, 1.57mm PCB Thickness, Silver (Ag) Plating, 2 Circuits

Download 0428202214 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0428202214 - Molex - PCB symbol
click to zoom

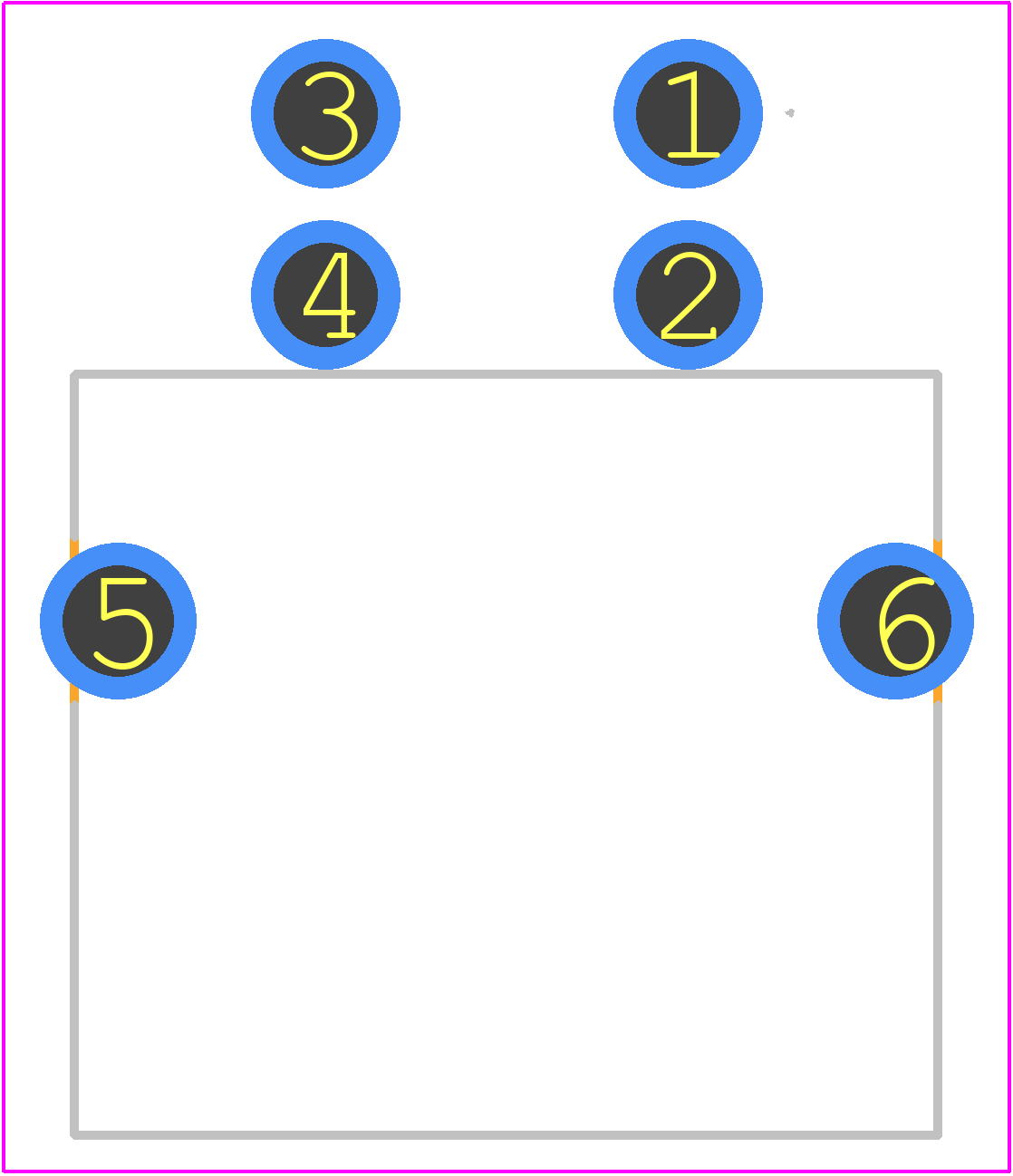

PCB Footprints
0428202214 - Molex PCB footprint - Other - Other - 0428202214
click to zoom
3D Models
0428202214 - Molex - 3D model - Other - 0428202214
click to zoom

0428202214 Details

  • Manufacturer Part Number:

    0428202214

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Additional Feature:

    RATED CURRENT (POWER) (A): 50A

  • Body Breadth:

    0.555 inch

  • Body Depth:

    1.126 inch

  • Body Length:

    0.937 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

  • UL Flammability Code:

    94V-0

0428202214 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0428202214 connector is to mate the keying feature first, followed by the shell, and finally the contacts. This ensures proper alignment and prevents damage to the connector.
  • To ensure proper polarization, make sure the keying feature on the plug is aligned with the keyway on the receptacle. This ensures that the connector is mated correctly and prevents mis-mating.
  • The 0428202214 connector is rated for operation up to 125°C (257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector meets the required temperature specifications.
  • Yes, the 0428202214 connector is designed to withstand vibrations and can be used in high-vibration environments. However, it's crucial to follow proper mounting and installation procedures to ensure the connector remains secure and functional.
  • The 0428202214 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for up to 30 minutes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0428202214 Overview

Use the download button to access the 0428202214 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 04282, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
