0428202223 - Molex

Description: 10.00mm Pitch Mini-Fit Sr. Header, Single Row, Right-Angle, 2.36mm PCB Thickness, 0.76µm Gold (Au) Selective Plating, 2 Circuits

Download 0428202223 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0428202223 - Molex - PCB symbol
click to zoom
PCB Footprints

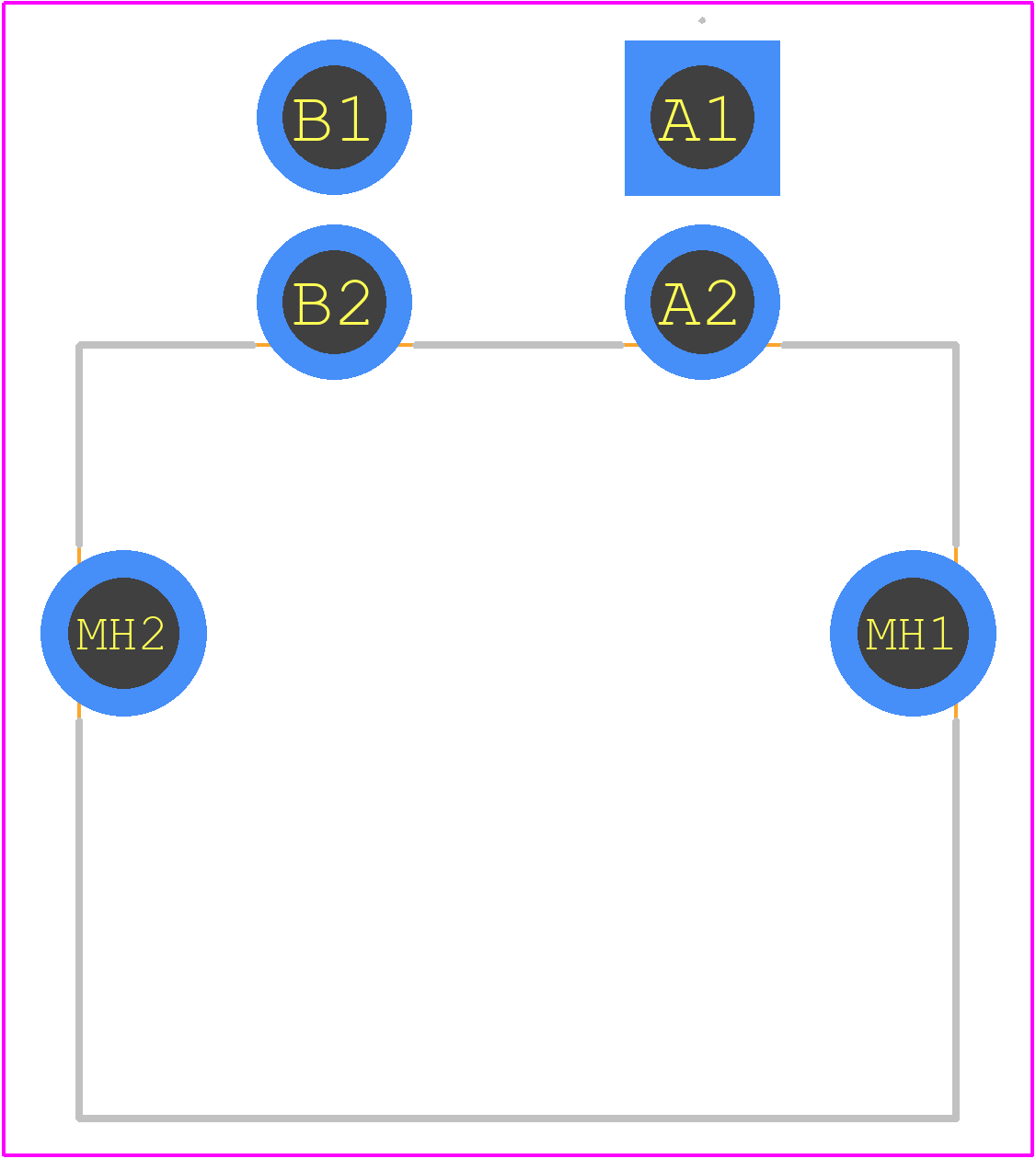

0428202223 - Molex PCB footprint - Other - Other - 0428202223-2
click to zoom
3D Models
0428202223 - Molex - 3D model - Other - 0428202223-2
click to zoom

0428202223 Details

  • Manufacturer Part Number:

    0428202223

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    6.87

  • Additional Feature:

    POLARIZED

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    BLADE PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

  • UL Flammability Code:

    94V-0

0428202223 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0428202223 connector is to mate the keying feature first, followed by the shell, and finally the contacts. This ensures proper alignment and prevents damage to the connector.
  • To ensure proper polarization, make sure the keying feature on the plug is aligned with the keyway on the receptacle. This ensures that the connector is mated correctly and prevents mis-mating.
  • The 0428202223 connector is rated for operation up to 125°C (257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector meets the required temperature range.
  • Yes, the 0428202223 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 0428202223 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for up to 30 minutes.
