0431605106 footprint, schematic symbol and 3D model by Molex

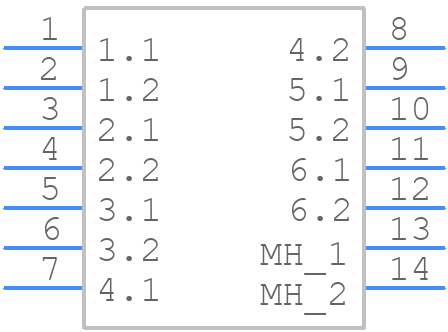

Symbol

click to zoom

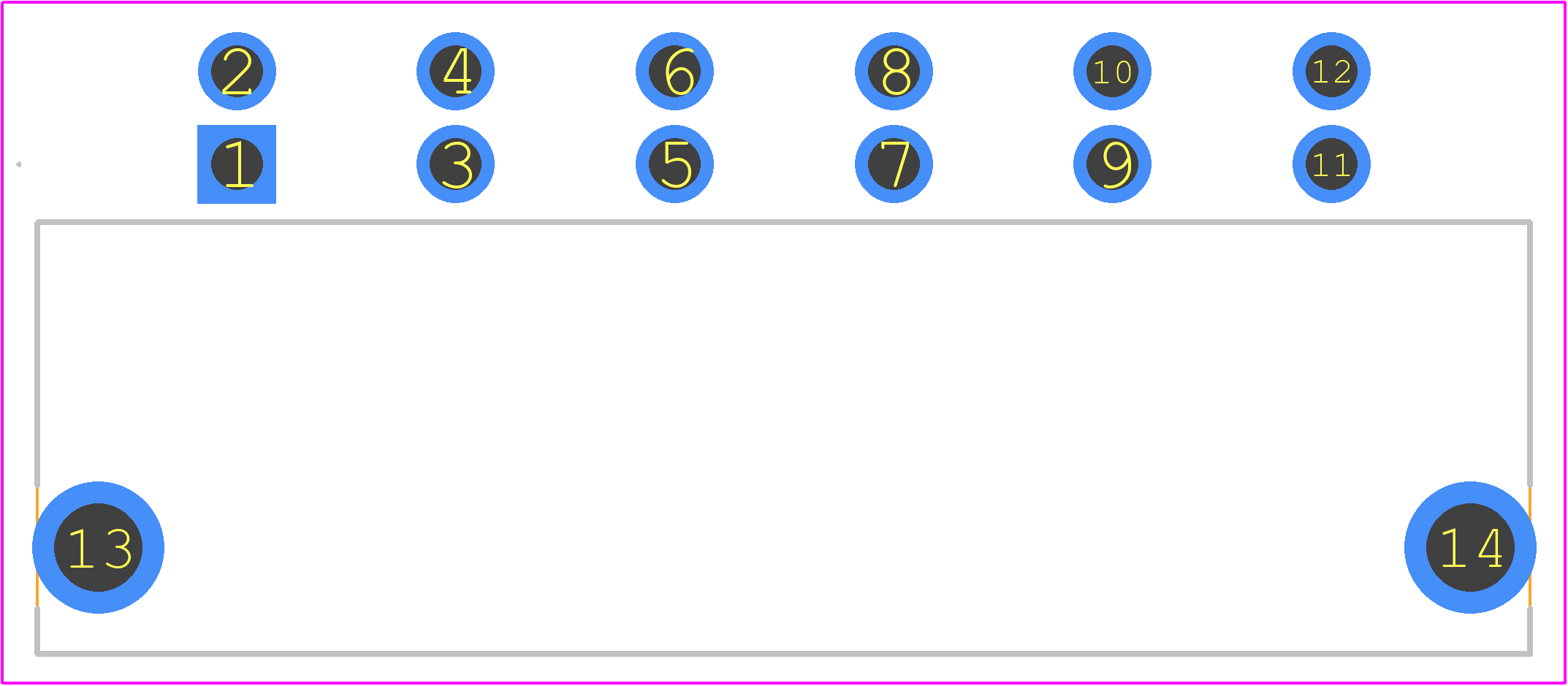

PCB Footprints

0431605106 - Molex PCB footprint - Other - Other - 0431605106-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 0431605106
Part Number 0431605106
Manufacturer Molex
Pin Count 14
Part Category Connector
Package Category Other
Footprint Name Other - 0431605106-1
Released Date May 9, 2026
Last Modified Date May 9, 2026 2:26 PM UTC
Pinout / Pin List Click Here (Member Only)

0431605106 Details

Manufacturer Part Number:
0431605106
Manufacturer:
Molex

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

0431605106 Overview

Use the download button to access the 0431605106 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 04316, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
