0449141601 - Molex

Description: Micro-Fit CPI Header, Compliant Pin Interface, Dual Row, Vertical, 16 Circuits, Tin (Sn) Plating, Glow-Wire Capable

Download 0449141601 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0449141601 - Molex - PCB symbol
click to zoom
PCB Footprints

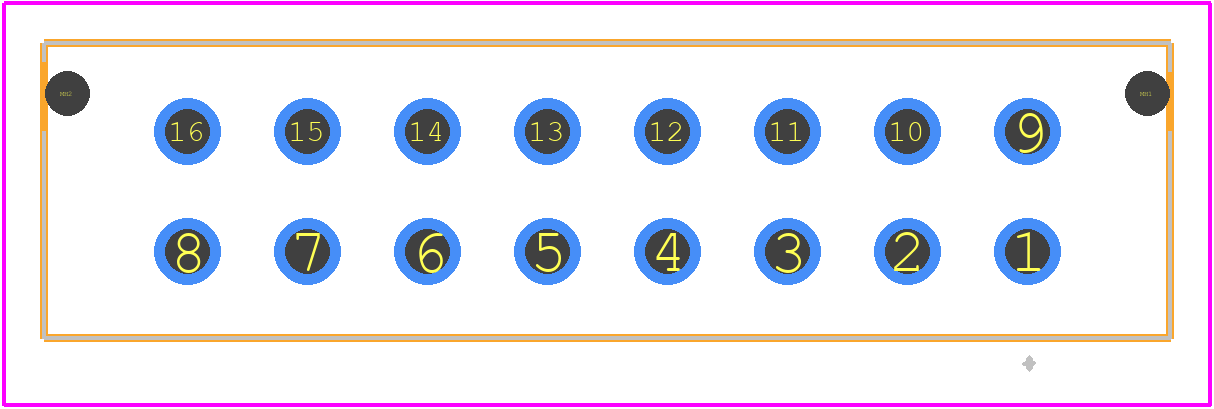

0449141601 - Molex PCB footprint - Other - Other - 0449141601-1
click to zoom
3D Models
0449141601 - Molex - 3D model - Other - 0449141601-1
click to zoom

0449141601 Details

  • Manufacturer Part Number:

    0449141601

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER):8.5A

  • Body Breadth:

    0.346 inch

  • Body Depth:

    0.39 inch

  • Body Length:

    1.088 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

0449141601 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 0449141601 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 0449141601 connector has a rating of IP67, which means it can withstand temporary immersion in water and is protected against dust and other environmental factors. However, it's essential to follow proper sealing and installation procedures to maintain the connector's environmental rating.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 0449141601 connector. However, it's crucial to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.
  • Yes, it's essential to follow proper PCB layout guidelines for the 0449141601 connector to ensure reliable connections and prevent damage. This includes maintaining a minimum clearance of 1.5 mm between the connector and other components, and ensuring the PCB material can withstand the connector's operating temperature range.
