We use Cookies to give you the best experience on our website. By using our website and services, you expressly agree to the placement of our performance, functionality and advertising cookies. Please see our Privacy Policy for more information.

OK, Thanks

Notice for California users only:

This website or its third-party tools processes personal data.
In case of sale of your personal information, you may opt out by using the link: do not sell my personal information.

Otherwise, by continuing to use our website, you expressly agree to the use of personal information. To find out more about the categories of personal information collected and the purposes for which such information will be used, please refer to our Privacy Policy.

I understand
Opt-Out

If you are a California resident, the California Consumer Privacy Act ("CCPA") provides you with the right to opt out of the 'sale' of your Personal Information. Please review our Privacy Policy for a more detailed description of how we collect, use, and share the Personal Information of California residents in operating our business, your privacy rights as a California resident, and how to exercise your rights as a California resident.

To request that Supplyframe may not 'sell' your Personal Information, please submit the form below. Please note that some transfers of your Personal Information may not be considered 'sales' and certain exemptions may apply under the CCPA. Your selection does not affect other use and sharing of your information as outlined in our Privacy Policy.

Supplyframe is committed to protecting and respecting your privacy, and we’ll only use your personal information to administer your account and to provide the products and services you requested from us.

By clicking submit below, you consent to allow Supplyframe to store and process the personal information submitted above to provide you the content requested.

Part Image

0453004.MR - LITTELFUSE

Description: Fuse Chip Very Fast Acting 4A 125V SMD Solder Pad 2410 Ceramic T/R

Download 0453004.MR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

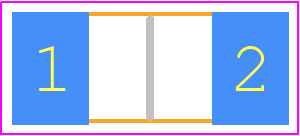

0453004.MR - LITTELFUSE PCB footprint - Fuses Chip - Fuses Chip - 0453004.MR
click to zoom
3D Models
0453004.MR - LITTELFUSE  - 3D model - Fuses Chip - 0453004.MR
click to zoom

0453004.MR Details

  • Manufacturer Part Number:

    0453004.MR

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not_compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.10.00.40

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7.5

  • Blow Characteristic:

    VERY FAST

  • Body Breadth:

    2.69 mm

  • Body Height:

    2.69 mm

  • Body Length or Diameter:

    6.1 mm

  • Circuit Protection Type:

    ELECTRIC FUSE

  • Fuse Size:

    NANO

  • JESD-609 Code:

    e4

  • Joule Integral-Nom:

    3 J

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR

  • Rated Breaking Capacity:

    50 A

  • Rated Current:

    4 A

  • Rated Voltage(AC):

    125 V

  • Rated Voltage(DC):

    125 V

  • Reference Standard:

    CE; CSA; CUL; PSE; TUV; UL

  • Surface Mount:

    YES

  • Terminal Finish:

    SILVER

  • Terminal Shape:

    WRAPAROUND

  • Trip Time or Delay:

    5 s

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0453004.MR Overview

Use the download button to access the 0453004.MR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 04530, or try a keyword search, such as Electric Fuses

Parts related to 0453004.MR

Showing 0 results

0453004.MR Alternates

Showing results

Image Part Number Model
Part Image 0453004MR Littelfuse Inc

Electric Fuse, CHIP

Part Image 0453004.NRL Littelfuse Inc

Electric Fuse, Very Fast Blow, 4A, 125VAC, 125VDC, 50A (IR), Surface Mount, ROHS COMPLIANT

Part Image 0453004. Littelfuse Inc

Electric Fuse, Very Fast Blow, 4A, 125VAC, 125VDC, 50A (IR), Surface Mount, LEAD FREE

Part Image R451004. Littelfuse Inc

Electric Fuse, Very Fast Blow, 4A, 125VAC, 125VDC, 50A (IR), Surface Mount, LEAD FREE

Part Image 0451004.NR Littelfuse Inc

Electric Fuse, Very Fast Blow, 4A, 50A (IR), NANO, CHIP

For a full list of alternate parts for 0453004.MR, check out Findchips.com
