0467652301 - Molex

Description: 0.40mm Pitch Micro HDMI Connector, Right-Angle Receptacle, Surface Mount, Hybrid Type Mount, with Pick-and-Place Polyimide Tape, 19 Circuits, Lead-Free

Download 0467652301 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

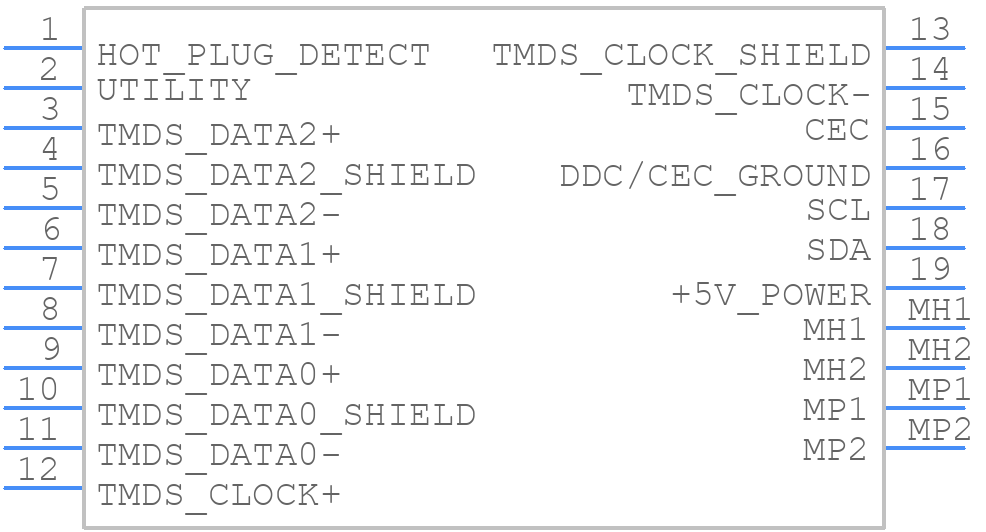

0467652301 - Molex - PCB symbol
click to zoom
PCB Footprints
0467652301 - Molex PCB footprint - Other - Other - 0467652301-1
click to zoom
3D Models
0467652301 - Molex - 3D model - Other - 0467652301-1
click to zoom

0467652301 Details

  • Manufacturer Part Number:

    0467652301

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • Connector Type:

    HDMI CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

0467652301 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 0467652301 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The 0467652301 connector has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The operating temperature range for the 0467652301 connector is -40°C to 105°C (-40°F to 221°F).
  • No, the 0467652301 connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0467652301 Overview

Use the download button to access the 0467652301 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 04676, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
